British Hydraulic Adapter

British Fittings are manufactured using British threads such as British Standard Pipe Parallel (BSPP) and British Standard Pipe Tapered (BSPT). These fittings and adapters are commonly found on equipment manufactured in the United Kingdom as well as from some OEM's in Europe. Metric fittings are more commonly found on mainland Europe equipment manufactured in such countries such as Germany, France, and Italy.

Finding the right adapters can be extremely difficult, but nothing compares to finding the right adapters for a machine with metric connections. There’s no doubt that equipment and parts that come from across the pond can be of the highest quality, but finding the right metric fitting adapters stateside can be nearly impossible.

We know adapters inside and out, which means in addition to being a manufacturer of standard parts, we’re also a metric adapters manufacturer. If there’s a part that you need for your operation, you can bet that we have it.

We offer a wide range of Hydraulic adaptors, available in BSP, BSPT, JIC, UNF, METRIC & ORFS, in sizes ranging from 1/8 to 2”.

We can offer a complete range of Hydraulic adaptors, please contact us with your requirements if you are not able find what you are looking for.

1JT adapter fittings are JIC male 74°cone to BSPT male types. Complete sizes of 1JT adapter fittings from 02 to 32 are manufactured and offered to meet a wide demand from the connection. Standard sizes are showed below on technical data table. We can manufacture with sizes from customers and design as requirements provided.

√ Part no.: 1JT(JIC male 74°cone to BSPT male)
√ Material: 45 carbon steel; stainless steel; as required
√ Package details: packed in plastic, then in cartons, then in boxes
√ Primary competitive advantages: quality approvals, prices, service
√ Main export markets: US, Canada, Great Britain, Middle East, South Asia, Europe

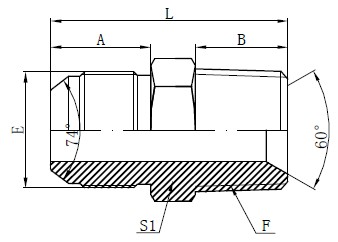

Weld Tube Fittings Drawing

Technical Data Table

	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1	L
1JT-04-02	U7/16"X20	ZG1/8"X28	14	10	14	30
1JT-04	U7/16"X20	ZG1/4"X19	14	14	14	34
1JT-04-06	U7/16"X20	ZG3/8"X19	14	14	19	34
1JT-04-08	U7/16"X20	ZG1/2"X14	14	19	22	41.5
1JT-05-04	U1/2"X20	ZG1/4"X19	14	14	14	34
1JT-05-06	U1/2"X20	ZG3/8"X19	14	14	19	34
1JT-05-08	U1/2"X20	ZG1/2"X14	14	19	22	41.6
1JT-06-04	U9/16"X18	ZG1/4"X19	14	14	17	34
1JT-06	U9/16"X18	ZG3/8"X19	14	14	19	34
1JT-06-08	U9/16"X18	ZG1/2"X14	14	19	22	41
1JT-08-04	U3/4"X16	ZG1/4"X19	16.7	14	22	39
1JT-08-06	U3/4"X16	ZG3/8"X19	16.7	14	22	38
1JT-08	U3/4"X16	ZG1/2"X14	16.7	19	22	44
1JT-08-12	U3/4"X16	ZG3/4"X14	16.7	19.5	30	46
1JT-10-06	U7/8"X14	ZG3/8"X19	19.5	14	24	42
1JT-10-08	U7/8"X14	ZG1/2"X14	19.5	19	24	47
1JT-10-12	U7/8"X14	ZG3/4"X14	19.5	19.5	30	48
1JT-12-08	U1.1/16"X12	ZG1/2"X14	22	19	30	50
1JT-12	U1.1/16"X12	ZG3/4"X14	22	19.5	30	50
1JT-12-16	U1.1/16"X12	ZG1"X11	22	24	36	57
1JT-12-20	U1.1/16"X12	ZG1.1/4"X11	22	25	46	60.2
1JT-16-12	U1.5/16"X12	ZG3/4"X14	23	19.5	36	53
1JT-16	U1.5/16"X12	ZG1"X11	23	24	36	58
1JT-16-20	U1.5/16"X12	ZG1.1/4"X11	23	25	46	61
1JT-16-24	U1.5/16"X12	ZG1.1/2"X11	23	25	50	64
1JT-20-16	U1.5/8"X12	ZG1"X11	24.5	24	46	62
1JT-20	U1.5/8"X12	ZG1.1/4"X11	24.5	25	46	63
1JT-24	U1.7/8"X12	ZG1.1/2"X11	27.5	25	50	69
1JT-24-32	U1.7/8"X12	ZG2"X11	27.5	29	70	74
1JT-32	U2.1/2"X12	ZG2"X11	34	29	70	81

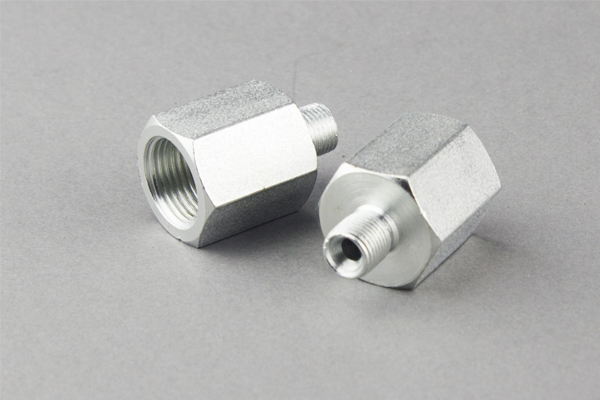

Item 5B is BSP male 60 degrees seat bonded seal with BSP female threads. 5B series adapter fittings are popular selling in YH Hydraulic. YH offers extensive line of BSP adapters to complete your connection. Adapters are available in brass, malleable iron, forged and stainless steel. A wide selection of this line of adapters is in stock at YH.

√ Part no.: 5B(BSP male 60 degrees seat bonded seal with BSP female threads)
√ 5B type: Straight; one side BSP male, the other BSP female
√ 5B advantage: Promise quality; Eaton standard; Reasonable prices
√ Usage: easy to install and disconnected
√ OEM service: available

British Standard Hose Adapters Drawing

Technical Data Table

	THREAD		DIMENSIONS
PART NO.	E	F	A	S1	L
5B-02-04	G1/8"X28	G1/4"X19	10	19	28
5B-04-02	G1/4"X19	G1/8"X28	12	19	30
5B-04	G1/4"X19	G1/4"X19	12	19	30
5B-04-06	G1/4"X19	G3/8"X19	12	22	32
5B-06-04	G3/8"X19	G1/4"X19	13.5	22	33.5
5B-06	G3/8"X19	G3/8"X19	13.5	22	33.5
5B-06-08	G3/8"X19	G1/2"X14	13.5	27	33.5
5B-08-06	G1/2"X14	G3/8"X19	16	27	36
5B-08	G1/2"X14	G1/2"X14	16	27	36
5B-08-10	G1/2"X14	G5/8"X14	16	30	42
5B-08-12	G1/2"X14	G3/4"X14	16	32	40
5B-10-08	G5/8"X14	G1/2"X14	17.5	30	44
5B-12-08	G3/4"X14	G1/2"X14	18.5	32	43
5B-12	G3/4"X14	G3/4"X14	18.5	32	42.5
5B-12-16	G3/4"X14	G1"X11	18.5	41	52.5
5B-16-12	G1"X11	G3/4"X14	20.5	41	54.5
5B-16	G1"X11	G1"X11	20.5	41	54.5
5B-16-20	G1"X11	G1.1/4"X11	20.5	50	37.5
5B-20-16	G1.1/4"X11	G1"X11	20.5	50	57.5
5B-20	G1.1/4"X11	G1.1/4"X11	20.5	50	56.5
5B-20-24	G1.1/4"X11	G1.1/2"X11	20.5	55	57.5
5B-24	G1.1/2"X11	G1.1/2"X11	23	55	60
5B-32-24	G2"X11	G1.1/2"X11	23	70	60
5B-32	G2"X11	G2"X11	25.5	70	62.5

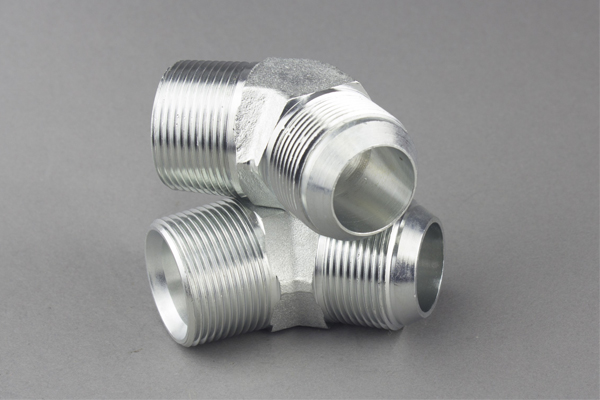

1T4 adapter fittings are 45°BSPT male types. Sizes from 02 to 32 are commonly manufactured in our factory. 1T4 adapter fittings are coming in material of mild steel which is also known as 20 carbon steel. 1T4 adapter fittings are forged types and finished by CNC machines so that high precision and required tolerance are controlled.

√ Part no.: 1T4(45°BSPT Male)
√ Place of Origin: Zhejiang, China(Mainland)
√ Material: 45 Carbon steel; Mild steel; Stainless steel
√ Package details: Nylon plastic + corrugated carton + multiple plywood case
√ Delivery time: less than 7 days for stock products; less than 40 days for one order no matter small or big
√ Delivery port: Ningbo(nearest one); Shanghai; Guangzhou; etc.

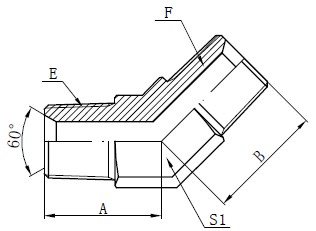

BSPT Male Connector Drawing

Technical Data Table

	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1
1T4-02	ZG1/8"X28	ZG1/8"X28	19	21	11
1T4-04	ZG1/4"X19	ZG1/4"X19	22	27	14
1T4-06	ZG3/8"X19	ZG3/8"X19	22	29	17
1T4-08	ZG1/2"X14	ZG1/2"X14	27	37	22
1T4-12	ZG3/4"X14	ZG3/4"X14	33	43	27
1T4-16	ZG1"X11	ZG1"X11	37	47	33
1T4-20	ZG1.1/4"X11	ZG1.1/4"X11	40	56	44
1T4-24	ZG1.1/2"X11	ZG1.1/2"X11	47	57	50
1T4-32	ZG2"X11	ZG2"X11	55	63	65

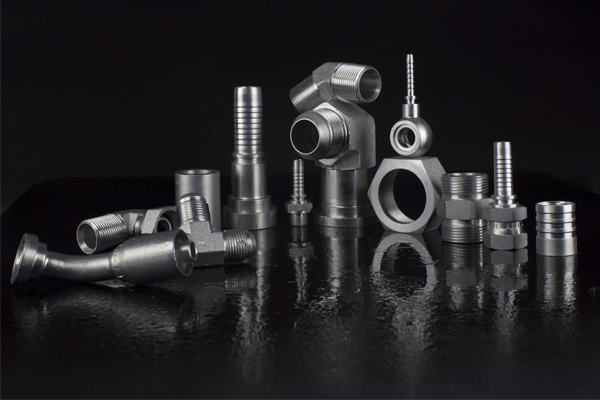

GT adapter fittings are BSPT female tee which are manufactured from 02 to 32. GT adapter fittings are coming in material of mild steel which is 20 carbon steel. GT adapter fittings are forged types and manufactured by CNC machines to ensure high precision and right tolerance.

√ Part no.: GT(BSPT Female Tee)
√ Sizes: from 02 to 32 which are standard items produced
√ MOQ: 300pcs one item for re-produced items.
√ Coating: white zinc plated; yellow zinc plated; chrome plated; nickel plated
√ Delivery time: less than 30 days for one order big or small.

BSPT Female Tee Drawing

Technical Data Table

		DIMENSIONS
PART NO.	THREAD E	A	S1
GT-02	ZG1/8"X28	20	14
GT-04	ZG1/4"X19	21	17
GT-06	ZG3/8"X19	25	22
GT-08	ZG1/2"X14	29	27
GT-12	ZG3/4"X14	34	33
GT-16	ZG1"X11	40	41
GT-20	ZG1.1/4"X11	52	54
GT-24	ZG1.1/2"X11	50	56
GT-32	ZG2"X11	63	68

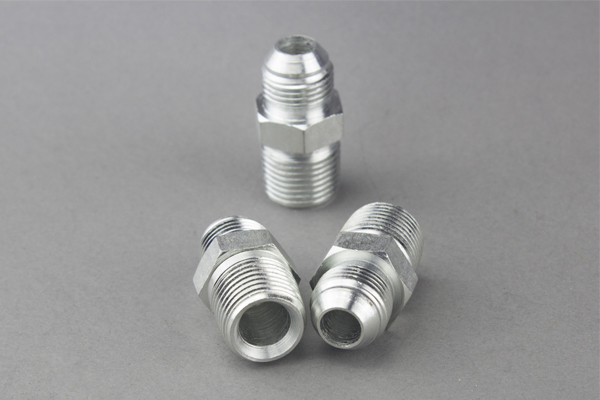

1BT adapter fittings are BSP male 60 degrees seat bonded seal to BSPT male. Complete sizes from 02 to 32 can be chosen from YH stock. Adapter fittings are manufactured with good quality of material and by CNC machines to control the exact precision. YH is offering a wide line of adapter fittings. Please go ahead to visit our website or contact to us for any products requirements.

√ Part no.: 1BT(BSP Male 60°Seat Bonded Seal to BSPT Male)
√ Sales points: quality assurance both for our products and service; favorable prices; environment friendly technology; OEM and ODM service provided
√ After-sales: available
√ MOQ service: 300PCS for one item if need to be produced; no limits for stock products
√ Deliver time: less than 20 days after receive the deposit

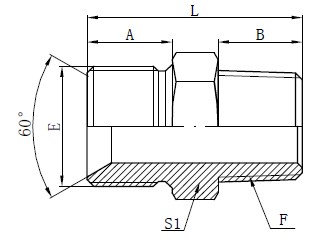

Straight Adaptor Drawing

Technical Data Table

	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1	L
1BT-02	G1/8"X28	R1/8"X28	10	10	14	26
1BT-02-04	G1/8"X28	R1/4"X19	10	14	14	30
1BT-04	G1/4"X19	R1/4"X19	12	14	19	32
1BT-04-02	G1/4"X19	R1/8"X28	12	10	19	28
1BT-04-06	G1/4"X19	R3/8"X19	12	14	19	32
1BT-06	G3/8"X19	R3/8"X19	13.5	14	22	35
1BT-06-04	G3/8"X19	R1/4"X19	13.5	14	22	35
1BT-06-08	G3/8"X19	R1/2"X14	13.5	19	22	41
1BT-08	G1/2"X14	R1/2"X14	16	19	27	45
1BT-08-06	G1/2"X14	R3/8"X19	16	14	27	40
1BT-08-12	G1/2"X14	R3/4"X14	16	19.5	27	45
1BT-10-08	G5/8"X14	R1/2"X14	17.5	19	30	45
1BT-10-12	G5/8"X14	R3/4"X14	17.5	19.5	30	47
1BT-12	G3/4"X14	R3/4"X14	18.5	19.5	32	48
1BT-12-08	G3/4"X14	R1/2"X14	18.5	19	32	47
1BT-12-16	G3/4"X14	R1"X11	18.5	24	36	53
1BT-16	G1"X11	R1"X11	20.5	24	41	58
1BT-16-12	G1"X11	R3/4"X14	20.5	19.5	41	53
1BT-16-20	G1"X11	R1.1/4"X11	20.5	25	46	59
1BT-20	G1.1/4"X11	R1.1/4"X11	20.5	25	50	62
1BT-20-16	G1.1/4"X11	R1"X11	20.5	24	50	61
1BT-20-24	G1.1/4"X11	R1.1/2"X11	20.5	25	50	62
1BT-24	G1.1/2"X11	R1.1/2"X11	23	25	55	65
1BT-24-16	G1.1/2"X11	R1"X11	23	24	55	61
1BT-24-20	G1.1/2"X11	R1.1/4"X11	23	25	55	65
1BT-24-32	G1.1/2"X11	R2"X11	23	29	65	69
1BT-32	G2"X11	R2"X11	25.5	29	70	72
1BT-32-24	G2"X11	R1.1/2"X11	25.5	25	70	68

1B4 adapter fittings are 45°BSP male 60°seat types which are widely used in the connections of different machines. A comprehensive line of adapter fittings are involved in YH production which can meet a variety of connection demands. Universal thread types of fittings can be found and chosen in YH Hydraulic. Please go ahead to visit our website or contact us for detailed requirements.

√ Part no.: 1B4(45°BSP Male 60°Seat)
√ Sizes: 1/8" to 2"; other sizes or differences can also be finished in our factory
√ Thread type: BSP male to BSP male
√ Related type: straight type(1B); 90°elbow type(1B9)
√ Free samples: available for less than 5pcs.

Industrial Tube Fittings Drawing

Technical Data Table

	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1
1B4-02-04	G1/8"X28	G1/4"X19	22	22	14
1B4-04	G1/4"X19	G1/4"X19	22	22	14
1B4-04-06	G1/4"X19	G3/8"X19	22	22	17
1B4-06	G3/8"X19	G3/8"X19	22	22	17
1B4-06-08	G3/8"X19	G1/2"X14	27	27	22
1B4-08	G1/2"X14	G1/2"X14	27	27	22
1B4-08-12	G1/2"X14	G3/4"X14	33	33	27
1B4-10	G5/8"X14	G5/8"X14	27	27	22
1B4-10-12	G5/8"X14	G3/4"X14	33	33	27
1B4-12	G3/4"X14	G3/4"X14	33	33	27
1B4-12-16	G3/4"X14	G1"X11	37	37	33
1B4-16	G1"X11	G1"X11	37	37	33
1B4-16-20	G1"X11	G1.1/4"X11	40	40	44
1B4-20	G1.1/4"X11	G1.1/4"X11	40	40	44
1B4-20-24	G1.1/4"X11	G1.1/2"X11	47	47	50
1B4-24	G1.1/2"X11	G1.1/2"X11	47	47	50
1B4-32	G2"X11	G2"X11	55	55	65

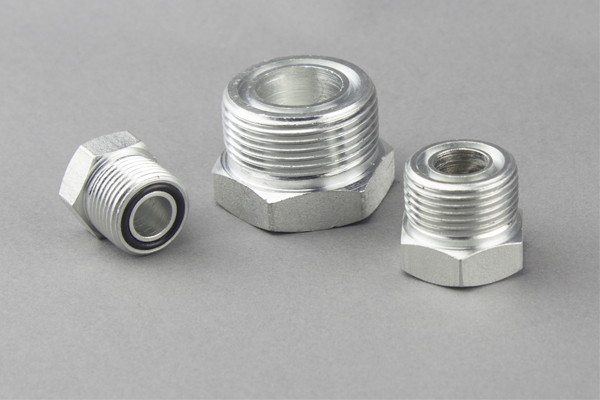

4B adapter fittings are BSP male 60°seat or bonded seal plug types. YH is a professional manufacturer of hydraulic pipe fittings. We have got rich experience in manufacturing British hydraulic pipe fittings. Equipped with advanced CNC machines and staffed with experienced workers, we use statistical technical research analysis to ensure precise quality of adapter fittings.

√ Part no.: 4B(BSP Male 60°Seat or Bonded Seal Plug)
√ Sizes: from 02 to 32 are widely involved in our production
√ Material: carbon steel; stainless steel; brass
√ Samples policy: less than 5pcs is free of charge for checking the quality
√ Payment term: 100% TT in advance(for small orders); 30%TT in advance, 70% TT before shipment or against Bill of Lading; Letter of Credit payment also available

Hydraulic Plugs Drawing

Technical Data Table

		DIMENSIONS
PART NO.	THREAD E	C	S1	S2
4B-02	G1/8"X28	10	14	16
4B-04	G1/4"X19	12	19	18
4B-06	G3/8"X19	13.5	22	21
4B-08	G1/2"X14	16	27	24
4B-10	G5/8"X14	17.5	30	27
4B-12	G3/4"X14	18.5	32	28
4B-16	G1"X11	20.5	41	32
4B-20	G1.1/4"X11	20.5	50	37
4B-24	G1.1/2"X11	23	55	40
4B-32	G2"X11	25.5	70	43

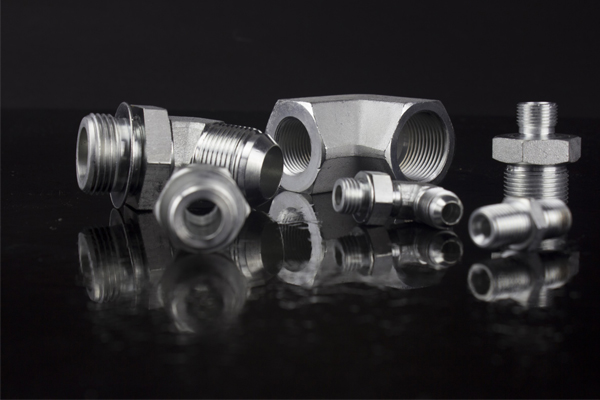

3B9 adapter fittings are 90 degrees BSP female 60 degrees cone type. YH Hydraulic offers extensive line of BSP adapter fittings to complete your connection. Fittings are available in brass, malleable iron, forged and stainless steel. A wide selection of this line of adapter fittings is in stock at YH Hydraulic.

√ Part no.: 3B9(90°BSP Female 60°Cone)
√ Sizes: from G1/8" to G2" are available in our factory
√ Brand: YH; production standard is Winner same as Eaton
√ Application: Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction, etc.
√ Testing: a small amount will be put into testing before whole order is delivered.

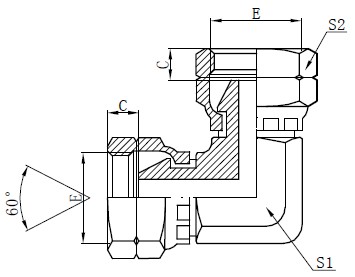

BSP Female Elbow Adapter Drawing

Technical Data Table

	E	DIMENSIONS
PART NO.	THREAD E	C	S1	S2
3B9-02	G1/8"X28	5.5	11	14
3B9-04	G1/4"X19	5.5	11	19
3B9-06	G3/8"X19	6.5	17	22
3B9-08	G1/2"X14	8	19	27
3B9-10	G5/8"X14	10.5	22	30
3B9-12	G3/4"X14	11.5	27	32
3B9-16	G1"X11	11.5	33	41
3B9-20	G1.1/4"X11	12	44	50
3B9-24	G1.1/2"X11	13	50	55
3B9-32	G2"X11	16	65	70
