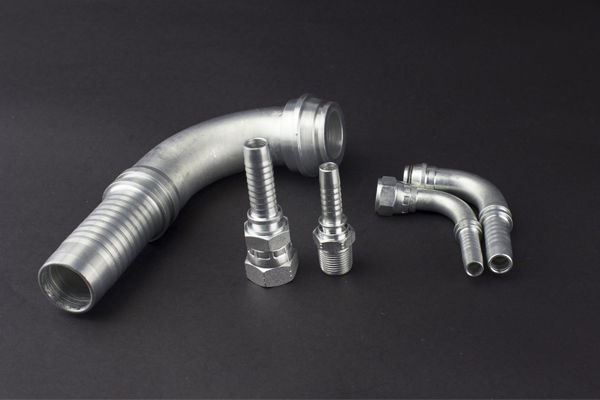

Female Hydraulic Fittings

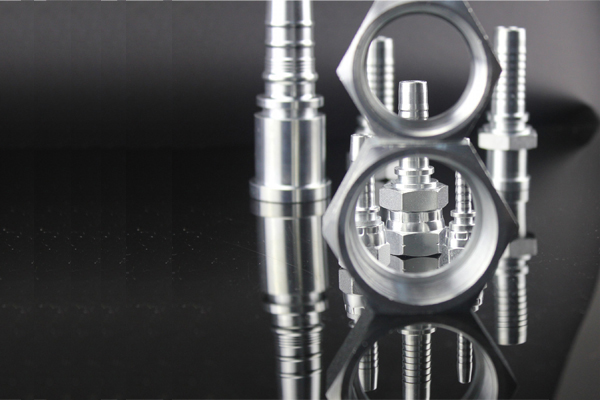

22611D fittings are BSP female 60 degrees cone with double hexagon. 22611D fittings are special for higher pressure hydraulic hoses demands. 22611D fittings are manufactured with sizes from 1/4’’ to 2’’ which can meet most requirements of machines connection. 22611D fittings are coated with zinc plated, chrome plated and nickel plated.

Details

√ Part no.: 22611D(BSP Female 60°Cone With Double Hexagon)
√ Related items: 22611(single hexagon); 22612D(double hexagon for spiral hose); others please refer to our catalog.
√ Color options: white, yellow, silver, colorful
√ Materials: 45 carbon steel, 20 carbon steel, stainless steels
√ Delivery time: less than 20 days for this item; less than 5 days for stock products.

Drawing

Technical Data Table

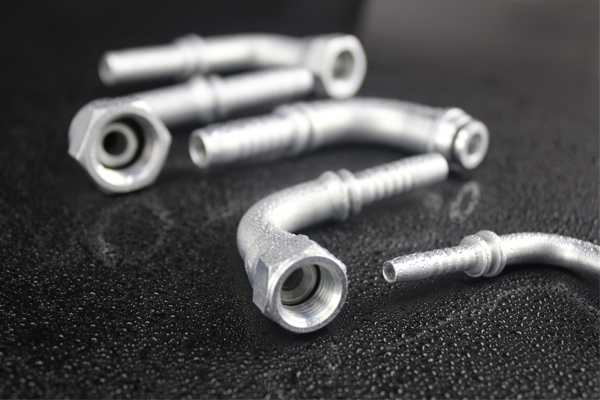

22641 are popular fitting types manufactured in YH factory and accepted around the world. 22641 fittings are with 45°BSP female 30°cone thread type. We offer complete sizes to meet most machine connection demands. We not only provide quality products with reasonable prices, but also nice service. Please feel no hesitate to advise us with any comments or suggestions.

Details

√ Part no.: 22641(45°BSP Female 60°Cone)
√ Related items: 22642(fittings for one, two or four wire hoses); 22611(straight type); 22691(90 degrees elbow)
√ Stock condition: we have kept most items as stock products so that it can shorten delivery time
√ Samples: available for less than 5pcs
√ Delivery time: less than 5 days for stock items; less than a month for an order big or small.
√ Delivery port: Ningbo; Shanghai; Guangzhou

Drawing

Technical Data Table

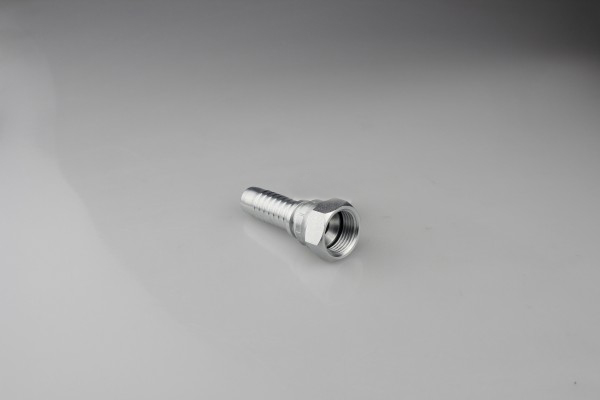

22211 series fittings are BSP female thread with flat face. We offer a wide range of swivel female flat seat nipple hexagon BSP that is used for connecting various pipes or tubes. These fittings are designed to find application in various petrochemical and other industries. These fittings are highly durable and high pressure handling.

Details

√ Part no.: 22211(BSP Female Flat Seat)
√ Available hoses: 1SN(R1AT); 2SN(R2AT); R16; R17; Pressure wash hoses; R7; R8; Lower pressure R3 hose
√ Available ferrules: ferrules for one or two steel wire braided hoses(00110; 00210;00100;00200 YH part no)
√ Type: available for crimped or non-crimped with ferrules
√ Delivery time: Less than 20 days; support for FOB(Ningbo) or CIF(customer’s port)
√ Color: White(zinc-plated); Yellow(zinc-plated); Silver(Chrome plated)

Drawing

Technical Data Table

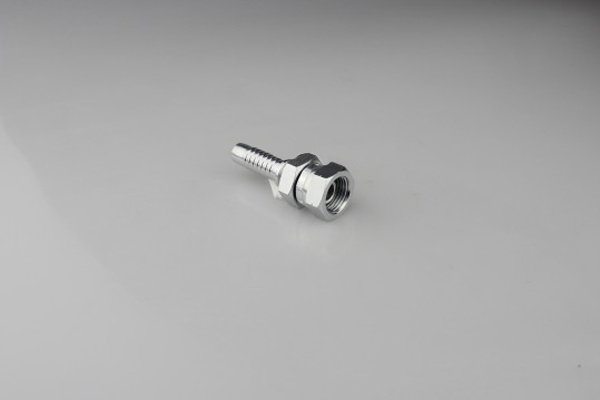

22611 instead of BSP female 60 degrees cone are for one steel wire braided hydraulic hoses to make hose assemblies after crimped with related size of ferrules. 22611 series fittings are produced in YH factory largely because of its good selling. Hydraulic fittings are manufactured to Winner as well as Eaton standard.

Details

√ Part no.: 22611(BSP Female 60 Degrees Cone)
√ Related products: 22612(also for spiral hose); 22691(90 degrees elbow); 22641(45 degrees elbow)
√ MOQ: 300PCS one item for re-produced items
√ Usage: used for high pressure hoses to make hose assemblies
√ Advantage: Smooth surface finish; Good material quality; Precisely manufactured.

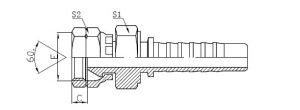

Drawing

Technical Data Table

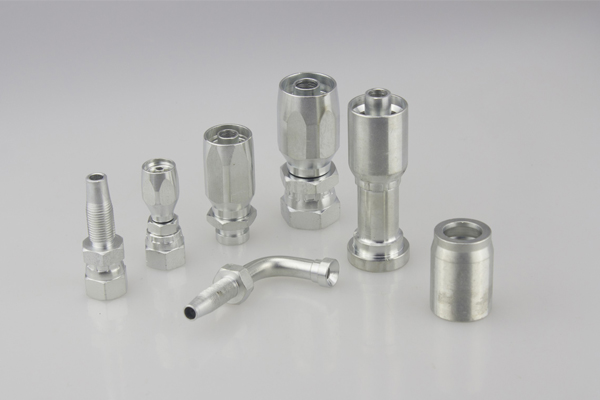

22111one piece is BSP female multiseal integral fitting. Complete sizes from 04 to 24 are involved in YH daily production. One item of 22111 one piece includes 22111 fitting and related ferrules crimped together. It can be used to make hose assembly directly. One piece fittings come in material of mild steel, stainless steel, brass, aluminum, etc.

Details

√ Part no.: 22111one piece(BSP Female Multiseal Integral Fitting)
√ Processing tool: raw material cutting machine; CNC processing machine; crimping machine
√ MOQ: 300PCS one item
√ Sample: less than 3 pieces are free according to stock condition
√ Surface: high degree of smooth surface
√ Coating: Zinc-plated; Chrome-plated; Spray painting

Drawing

Technical Data

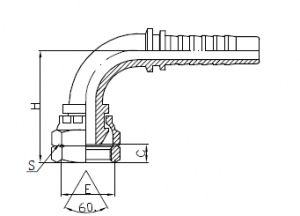

Part no.22691 is widely produced in YH factory and its thread type is BSP. 22691 is an 90 degrees elbow fitting type which includes about 10 sizes showed in technical data table(only for reference, customer designed sizes are welcomed). Each size can be produced as one particular fitting used in hose assembly production in the mining industry.

Details

√ Part no.: 22691(90°BSP Female 60°Cone)
√ Material: Carbon steel(#20;#45); Stainless steel(SS304; SS316); Brass
√ Coating: Zinc-plated; Chrome plated(Cr6 is not allowed to coat on fittings)
√ Sizes: Standard sizes showed on technical data table. Or sizes designed by customers
√ Shipping: orders finished with 10 days for popular delivery terms

Drawing

Technical Data Table

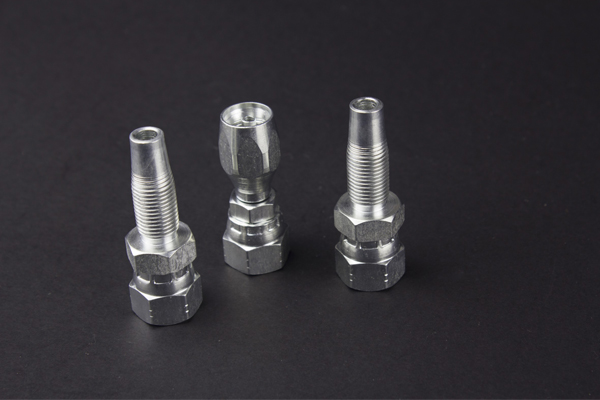

22611one piece fittings consist British thread type fittings and one piece fitting ferrule designed. Popular sizes are largely manufactured in YH factory and welcomed by customers over the world. Fittings and ferrules are all finished by CNC machines then crimped together. Similar integral fittings are available for selling which can be found from our e-catalog.

Details

√ Part no.: 22611one piece(BSP Female 60 Degrees Cone Integral Fitting)
√ Thread types: Metric, BSP, BSPT, JIC, ORFS, JIS, etc.
√ Features: high degree of smooth surface; clean without burr inside; no leaking when put into use
√ Products are 100% inspected on dimensions before package
√ Brand: YH(no or other brands are ok if certificate of authorization provided)

Drawing

Technical Data
