Hose skiving machines skive hydraulic hoses on the outside, on the inside, or on the outside and inside in a single step.
This device allows internal and external skiving of hydraulic hoses up to a 2" diameter. Hose skiving machine is provided with a fixed tool-holder spindle with only one cutter provided on which is a millimetric ruler which allows setting the skiving distance. Thus, replacement of the pin and adjustment of position of the tool according to the diameter of the hose to be skived is required.
Skiving a hydraulic hose is really about reliability. The right thing to do is to skive it if you're using reasonable fittings. It allows the fitting to bite into the braiding rather than simply rest at the top, the cover. If that cover peels back or pulls off, you're going to have failures. For hydraulic applications where reliability and safety is paramount, that's the main reason you really should skive.
We have a wide selection of hose skiving machines available, the range includes hand machines and workshop style machines.
Using our hose skiving machines you're able to internally skive hoses from 5/8″ to 2″ bore and externally skive hoses from 1/4″ to 2″ bore.
We have hose skiving machines available in single phase and three phase electrical connections, both of which are able to be bench mounted.
We also offer a hose cutting & skiving combination machine which is able to cut hoses up to 1-1/4″ bore and skive internally and externally up to 1-1/4″ bore too. This machine is also to be bench mounted and available for a three phase supply only.
Our hand hose skiving machines are by far the most popular product we sell due to their ease of use, simply mount in a vice and turn the handle and you have skived your hose.
Skiving is the process of removing the outer cover and sometimes the inner cover. The thing about skiving is that you need special equipment. The whole idea with skiving is it allows you to use those reusable fittings. A machine spins around and removes a bunch of material, makes a bit of a mess. The idea is that when you use a reusable hose fitting, you have the two-piece hose fittings that you can install in the field; if you have a broken hose in the machine, you can splice in an attachment or just get yourself by until you can get to a hose shop and get a proper hose made.
Once you cut your hose, you have the hose side, the fitting side, and attach them together. The hose side goes around in a left-handed thread. The idea is that if it’s skived, you don't have to push this threading through the cover of the hose, so not only is there more friction, but it bites into the rubber. You want those teeth to bite into the braiding itself, as that's going to be the strongest connection. Once you have that threaded on, after it's skived, you put in the fitting side, and that will push the hose outward to the teeth that are on the hose side fitting. That allows you to have a secure bite into the hose.
If you do try to use reusable fittings on hydraulic hose, as the hose warms up, what happens is the rubber becomes softer and more likely to release that soft material—because the hose side will not bite all the way into the braiding if you have the cover still attached to the hose. It will pull the entire thing off the braiding because it never actually bit down into it. This gets worse as the hose heats up. With any hydraulic application, obviously, hydraulic oil heats up and you’ll soon have an unreliable hose.

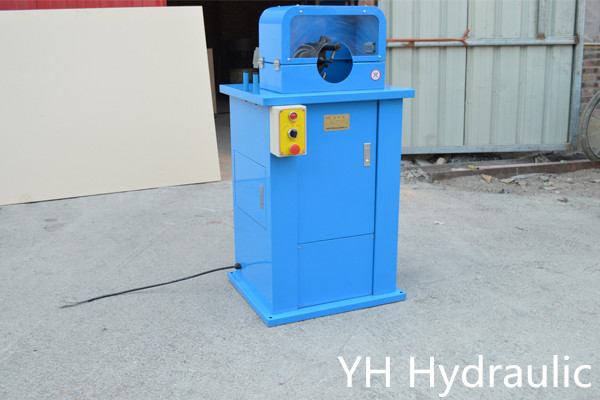

Hydraulic Hose Skiving Machine
Hose skiving machine YHHS-S10 support inner and outer rubber skiving. The max. size which YHHS-S10 can skive is 2". Some customers like to use skiving ferrules like 00100,00210, so it needs the skiving machine to skive the rubber hose firstly. YHHS-S10 can skive the rubber quickily. Before making purchase of the machines, it is better to make sure the voltage which can be used in the workshop. We are able to offer 380V, 220V, 280V, etc. Please feel free to talk to the sales department with any of your requirement.
Technical data of YHHC-S10
|External skiving Φ||2"|
|Internal skiving Φ||2"|
|Optional voltage & power||380V/0.75kw|
|Mandrel die set||included|
|Dimensions L x W x H(mm)||600x580x1110|
Package details: Gross weight: 90KGS Volume: 76cm*66cm*131 cm

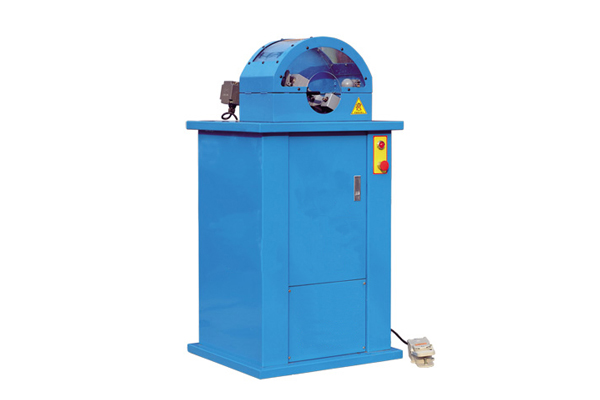

Flexible Hose Skiving Machine
YHFHSM-65F is a hose skiving machine which is suitable for R1AT, R2AT, 4SH, etc. Its skiving range is from 1/8’’ to 2’’ to slice rubber from hoses that can be used well. It does not make too much noise that influences your regular work. Details are showed on technical data table. But for other requirements, please contact our sales.
√ Part no.: YHFHSM-65F(Flexible Hose Skiving Machine)
√ Power will be off when the cover is opened
√ Adjust scale plate, adjust the blade rapid
√ Flexible blade which protect steel wire from scatter, and have compensation function
√ Support internal and external skiving
Technical data of YHFHSM-65F
|Crimper range||1/8"-2" 4SH|
|Standard voltage & motor||380V/0.75KW|

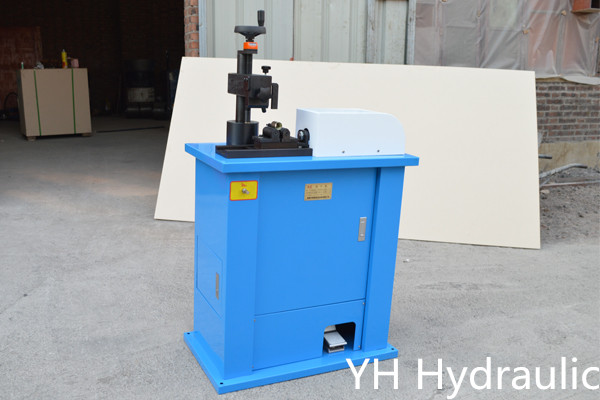

Hydraulic Marking Machine
Hydraulic marking machine YHHM-100 is used to mark numbers or letters on the ferrules, hose fittings, adapter fittings, or other carbon steel products. It is a pneumatic machine. It can mark on the ferrules which max OD is up to 100mm. YHHM-100 is a popularly welcomed machine among customers. We keep a stock for quick delivery.
Technical data of YHHM-100
|Max. OD of Ferrule||100mm|
|Pneumatic input||0.8 mpa|
|No. of characters||40pcs|
|Dimensions L x W x H(mm)||780x500x1100|
Package details: Gross weight: 120KGS Volume: 85cm x 55cm x 130cm

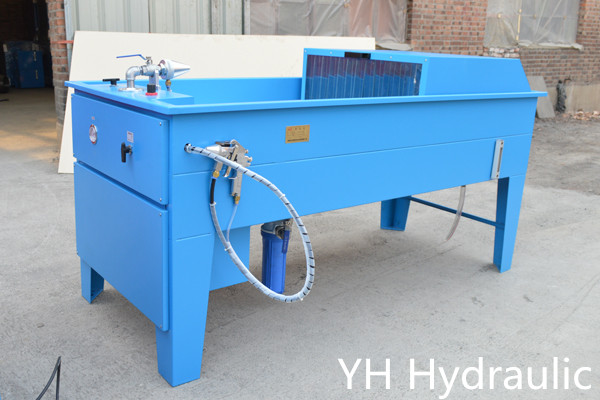

Hose Cleaning Machine
Hose cleaning machine YHHC-L200 can clean the hydraulic hoses from 3/16’’ to 2’’. It is a pneumatic machine. After assembled the hoses with fittings and nuts, it might have some dirt or impurity inside of the hoses. Hose cleaning machine helps to clean them out. Otherwise it will affect the hose assembly working.
Technical data of YHHC-L200
|Max hose size||2"|
|Pneumatic input||0.8 mpa|
|Exit pressure||5 mpa|
|Washing liquid capacity||200L|
|Dimensions L x W x H(mm)||2100x900x1050|
Package details: Gross weight: 280KGS Volume: 210cm x 92cm x 133cm

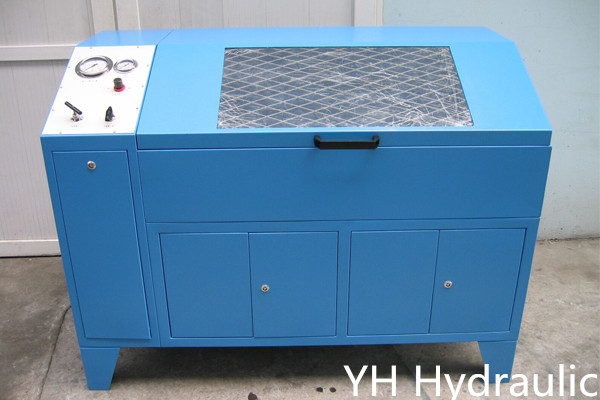

Hose Test Bench
Hose Test Bench YHHT-T150/250 is used to test the pressure of hose assemblies. And the max. pressure can be tested up to 150mpa(YHHT-T150) or up to 250mpa(YHHT-T250). The hose test machine can test one hose assembly or 6 hose assemblies once. YH Hydraulic keep stock for hose test bench in order to offer a quick deliver. YH Hydraulic is also dealing with hose crimping machines, nut crimping machines, ferrule crimping machines, hose cutting machines, skiving machines, etc.
Technical data of YHHT-T150/250
|Type of drive||P+S|
|Door mechanical safety device||Included|
|Ahock-proof checking windows||included|
|Peak pressure memory||-/included|
|Dimensions L x W x H(mm)||2100x850x1260|
Package details: Gross weight: 290KGS Volume: 210cm x 92cm x 133cm
