Hydraulic Tube Fittings

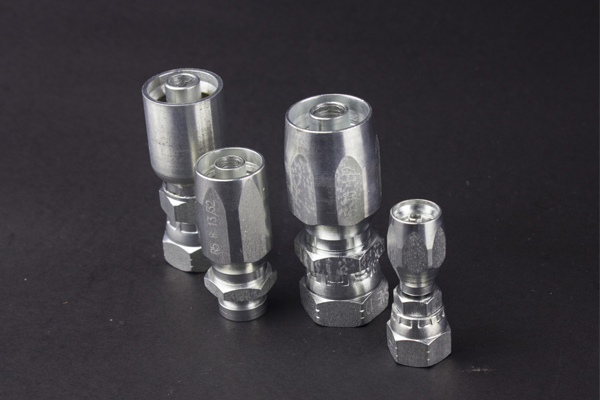

Part no. 26711 is a kind of JIC female with 74 degrees cone seat. Our part no.s are in line with Winner(Eaton as well) standard. For other brands like Manuli or Parker, we can figure out with our items to quote prices. Hose Fittings are made from carbon steel #45 or stainless steel if required. And sizes showed on technical data table are regularly produced.

Details

√ Part no.:26711(JIC Female 74°Cone Seat)
√ OEM service: Part no.s of famous companies are available as well as drawings or samples
√ Samples: less than 5PCS is for free; samples are from stock products if available; re-produced samples needs plenty of time(charged)
√ Surface treatment: Trivalent silver zinc; Trivalent yellow zinc; Hexavalent yellow zinc; Chrome plated; Electric-polish, etc.

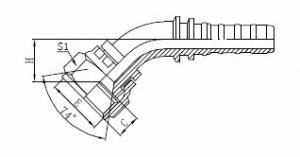

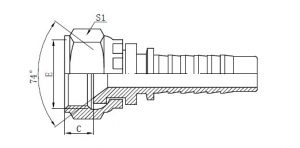

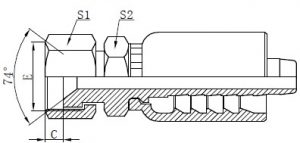

Drawing

Technical Data Table

YH Hydraulic are producing and selling various items of hydraulic fittings. 26711D is an American thread type JIC double hexagon fittings. It is widely used in hydraulic machine parts. JIC fittings are defined by the SAE J514 and MIL-F-18866 standards.

Details

√ Part no.: 26711D( JIC Female 74 Degrees Cone Seat With Double Hexagon)
√ Application: used for extremely high pressure hoses in fluid power machinery
√ Type: a 37- degree flare seating surface with an additional hexagon.
√ Stock: available for most sizes
√ OEM service: YH can provide OEM service to customers with drawings or samples presented; products designing to customers’ special demands.

Drawing

Technical Data

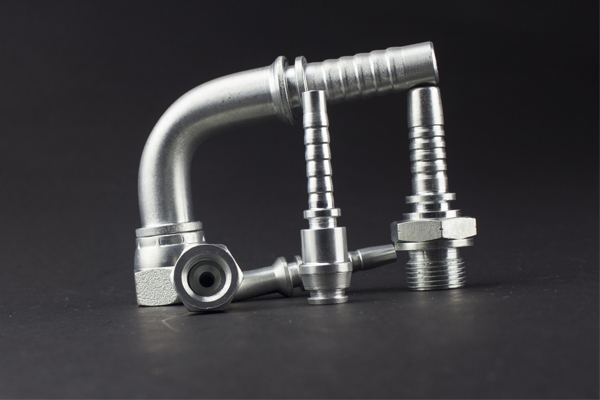

Part no.17811 is for SAE male 90 degrees cone seat thread. It includes sizes from 1/4’’ to 2’’that can meet most hoses requirements. YH specialize in JIS, DIN, Metric, SAE thread types of hydraulic fittings producing. Each step of fittings process are finished by CNC machines which can ensure its high precision.

Details

√ Part no.: 17811(SAE male 90 degrees cone seat)
√ Sizes: items showed on technical data are regularly produced ones. Other sizes are also available
√ Payment: 30% TT in advance, 70% TT before shipment that is commonly accepted by YH
√ Stock: many thread types and sizes are kept as stock products.
√ Currency: USD(in common); EURO; RMB; others

Drawing

Technical Data Table

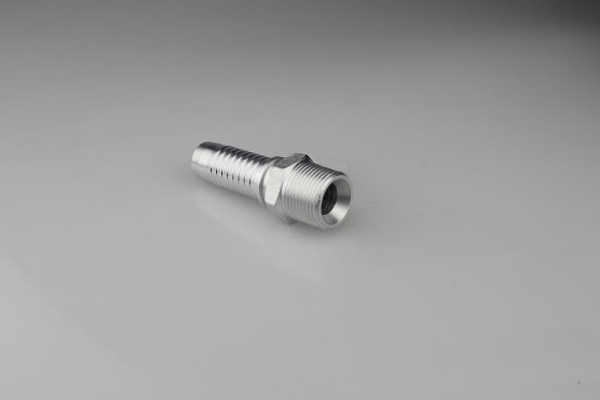

15611 fittings are with NPT male thread which is short for National Pipe Thread Taper. NPT is a U.S. standard for tapered threads used on hydraulic hose fittings. 15611 fittings have complete sizes from 1/4 inch to 2 inch which are for one steel wire braided hydraulic hose such as R1AT, ISN, 1SC, etc. These fittings are produced by CNC machines that can control right tolerance and smooth surface as required.

Details

Part no.: 15611(NPT Male)

Standard: Winner or Eaton production standard. Custom-orientated fittings are welcomed

Quality control: ISO9001-2008

Color: White; Yellow; Sliver(after zinc-plated)

Sizes: showed on technical data table are commonly produced ones; others also available

Drawing

Technical Data Table

26711one piece series are with thread of JIC female 74 degrees cone seat. 26711one piece fittings are 26711 fittings crimped with ferrules by crimping machines. Fittings and ferrules are precisely manufactured to avoid leaking when crimped with hydraulic hoses. YH are selling best prices and best quality to customers.

Details

√ Part no.: 26711one piece(JIC female 74 degrees cone seat integral fitting)
√ Material: 45 carbon steel(Fitting); 20 carbon steel(ferrule); others acceptable
√ Color: Yellow; White; Silver
√ Surface treatment: Zinc-plated; Chrome plated
√ Delivery time: within 10 days
√ Currency: USD; RMB; EURO; other popular currency available

Drawing

Technical Data Table

17811L series are SAE male 90 degrees cone seat long type fittings. 17811L are longer at head size compared with 17811. YH is involved in complete sizes and items of hydraulic fittings manufacturer. Different types can be found in our factory. Our fittings are used in hydraulic machines, excavators, loaders, and other mining equipments.

Details

√ Part no.: 17811L(SAE male 90 degrees cone seat long type)
√ Thread types: metric; ORFS; JIC; NPT; JIS; BSPT; BSP; other popular types
√ Sizes: from 1/4’’ to 3/4’’ are widely produced in YH Hydraulic
√ Coating: yellow zinc-plated; white zinc-plated; chrome plated
√ Delivery: Within 20 days; FOB(Ningbo) or other terms available

Drawing

Technical Data Table

34211 series fittings are ORFS female flat seat and non-crimped types. YH’s production covers most international threads and sizes of hydraulic fittings. Fittings have high precision, smooth surface finish and required tolerance. We ensure best quality products sold to customer so packing well is also important to protect from collision during delivery. We pack fittings in order in cartons with plastic cover.

Details

√ Part no.: 34211(ORFS Female Flat Seat; Non-crimped type)
√ Application: 34211 series fittings are used for one or two wire braided hoses; 34212 series are suitable for one, two or four wire braided hoses.
√ Sizes: from 1/4’’ to 1.1/2’’ are popular selling items.
√ Color: Yellow; White; Silver; Blue
√ Coating: Zinc plated; Chrome plated; Painting

Drawing

Technical Data Table

26791 fittings are 90 degrees JIC female 74 degrees cone seat threads. Complete sizes from 1/4’’ to 2’’ are covered in our production. All hydraulic fittings are manufactured from 45 carbon steel and stainless steel. Except forgings which are made from carbon steel 20. Our fittings are zinc plated and chrome plated mostly. But we can meet customers’ special demands.

Details

√ Part no.: 26791(90°JIC Female 74°Cone Seat)
√ Assembly performs extremely well even under severe vibration and thermal shocks
√ Fittings can be equally coupled to metric or fractional tubes
√ This system leak free integrity remains after disassembly and reassembly
√ Other related products: 26798-R5(reusable fitting); 26711(straight type); 26792(special for spiral hose); 26791one piece(integral fitting with ferrule)

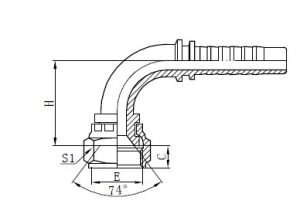

Drawing

Technical Data Table

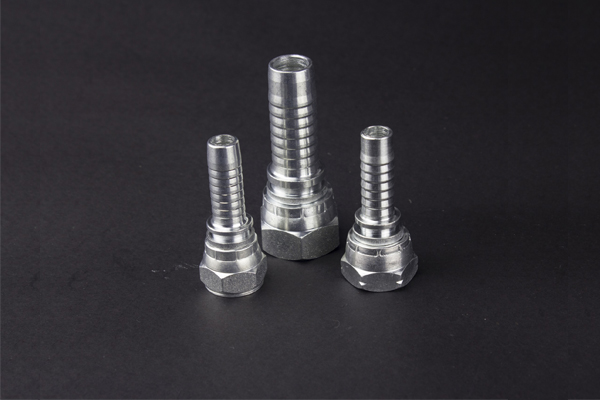

21611 series fittings are NPSM female 60 degrees cone. NPSM is a National Standard Free-Fitting Straight Mechanical Pipe Thread which piping convention refers to pipe thread that is not tapered. And NPSM pipe threads do not seal as effectively as NPT threads. Please make sure which thread type is required.

Details

√ Part no.: 21611(NPSM Female 60 Degrees Cone)
√ Material: 45 carbon steel; mild steel; stainless steel; required metals
√ Port: Ningbo(nearest); Shanghai; Guangzhou
√ Shipping term: FOB; CIF; FCA; CRF
√ Samples policy: less than 5 pieces is free of charge for checking our quality
√ Our goal: providing good quality products; trying to serve better.

Drawing

Technical Data Table

27891 fittings are 90 degrees SAE female 90 degrees cone seat types. Sizes of 27891 fittings are from 1/4’’ to 3/4’’ which are daily manufactured in YH Hydraulic. Our production includes a wide range of thread fittings such as metric, BSP, JIC, NPT, ORFS, etc. Also we can provide OEM service with samples, drawings or requirements provided.

Details

√ Part no.: 27891(90°SAE Female 90°Cone Seat)
√ MOQ: require 200PCS for each item
√ Prices: prices quoted are in line with quality presented, material and requirements provided.
√ Package: put in order in cartons covered with plastic, then put into boxes.
√ Delivery time: Less than 50 days for an order big or small

Drawing

Technical Data Table

26743 fittings are 45 degrees JIC female 74 degrees cone seat for interlock. 26743 fittings are special for higher pressure demands from hydraulic hose connections. YH Hydraulic is committed to provide a package of service which surpasses customers’ expectations. Please come to contact us for any products requirements or suggestions.

Details

√ Part no.: 26743(45°JIC Female 74°Cone Seat For Interlock)

√ Material: Carbon Steel(20 carbon steel, 45 carbon steel); stainless steel(SS304, SS316)

√ Types: straight, 45 degrees elbow, 90 degrees elbow

√ MOQ policy: require 300pcs for each item

√ Payment term: 50% TT in advance, 50% TT before shipment; 30% TT in advance, 70% TT before shipment or against B/L.

Drawing

Technical Data Table
