Metric Hydraulic Fittings

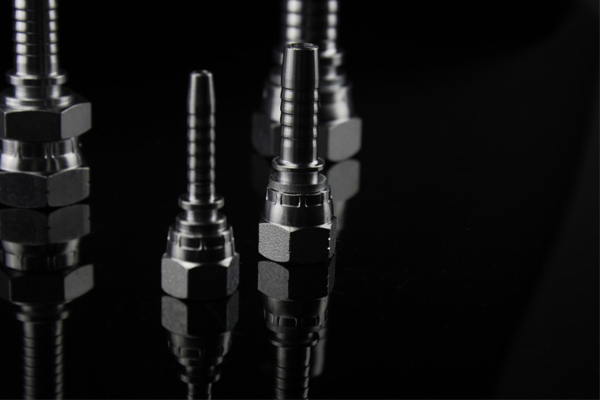

28611 JIS female fittings are with 30 degrees seat and double hexagon. Complete process of fitting producing can be visited in YH Hydraulic from raw material cutting to finial packing. YH fittings are of smooth surface without burs and impurities. Fittings are checked four times by our inspectors.

Details

√ Part no.: 28611(JIS Metric Female 60 Degrees Seat With Double Hexagon)
√ Threads: JIS, JIC, Metric, BSP, BSPT, NPT(female and male)
√ Sizes: from 04 to 24 (for most hoses)
√ Type: Straight, 45 Degrees Elbow, 90 Degrees Elbow
√ Custom-orientated service: produce according to drawings or samples provided

Drawing

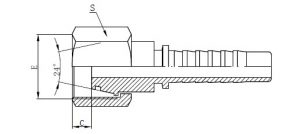

Item 30511 is metric thread female 24 degrees cone heavy type with o-ring face. It is a non-crimped fitting type. Relevant type is 20511 which is crimped fitting. 30511 fittings are standard to Winner production which is a worldwide brand. Fittings from YH Hydraulic can be used in different machines such as mining machine, hydraulic machines, tracks, etc.

Details

√ Part no.: 30511(Metric Female 24 °Cone H.T. with O-ring DIN3853 Non-crimp type)
√ Thread types: Metric; Komatsu metric; BSP; JIC; NPT.(main threads types involved)
√ Material: Brass; Carbon steel; Stainless Steel
√ MOQ: stock products have no MOQ demands. New produced items need MOQ to cut the costing
√ Stock: sizes of 30511 are mostly available for stock
√ Samples: stock products are for samples mostly. New produced items needs days and charge

Drawing

Technical Data Table

10211 series are JB metric male thread with o-ring seal face. 10211 series fittings are suitable for one or two steel wire braided hoses. To be equipped with spiral hoses, 10212 series fittings are your right choice. YH insists on providing customers with best material quality and well manufactured fittings. Also we provide reliable service to potential and cooperated customers.

Details

√ Part no.: 10211(JB Metric Male O-ring Seal)
√ Advantage: Perfect surface; smoothness without burrs and impurities
√ Sizes: Different fittings sizes apply to related hydraulic hoses
√ Quality: based on Winner(Eaton) standard; best quality material; well packed; ISO certificated
√ Samples policy: free samples can be tested for quality
√ Other items: can be found in “Brochure Download(PDF)” button

Drawing

Technical Data Table

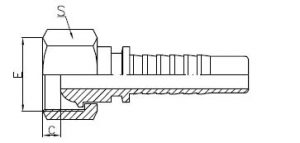

28691 series fittings are 90 degrees JIS metric female 60 degrees cone seat. General speaking, 28691 fittings are finished with double hex. But they can also be with single hex to customers demands because it can cut material costing so that selling prices are more competitive. Sizes from 04 to 24 are popularly produced in our factory.

Details

√ Part no.: 28691(90°JIS Metric Female 60°Cone Seat)
√ Type: Single nut or double hex both available in our factory
√ Material: carbon steel; stainless steel
√ Coating: white zinc-plated; yellow zinc-plated; chrome plated(silver)
√ Prices: prices quoted are based on our MOQ demands(300PCS one item)
√ Origin: Ningbo, China

Drawing

Technical Data Table

18611 series are JIS metric male 60 degrees cone seat which are based on Komatsu standard. Komatsu is a Japanese indigenous proper noun which means small pine tree. 18611 series fittings are popularly manufactured in YH Hydraulic that can meet most requirements from customers. 18611 fittings are finished with smooth surface, standard tolerance, and high precision.

Details

√ Part no.: 18611(JIS metric male 60 degrees cone seat)
√ Related Products: 28611(female type); 28641(female 45 degrees elbow); 28691(female 90 degrees elbow)
√ 28611 suitable hoses: 1SN(R1) hose; 2SN(R2) hose; R16 hose; R17 hose; R12/4SH/R13 hoses; Pressure wash hose
√ MOQ policy: 300 to 500 pcs each items for re-produced types.
√ Samples: Less than 5pcs is free for checking our quality level.

Drawing

Technical Data Table

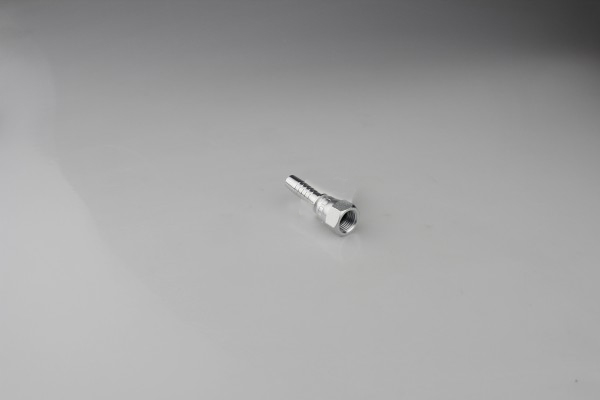

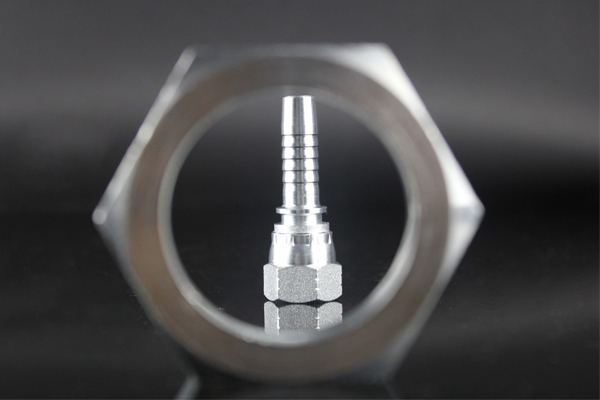

20111 fittings are metric female multi-seal types which are frequently manufactured in YH Hydraulic. 20111 types are widely used in hydraulic field and exported to Russia and Middle East mostly. Our fittings are of good quality and lower prices that can meet customers’ demands for higher quality widely. And we can provide OEM service with samples, drawings or requirements presented.

Details

√ Part no.: 20111(Metric Female Multiseal)
√ Sizes: we are providing a full range of specifications of 20111 fittings which are showed on technical table.
√ Image: image for 20111 fittings are only for reference. Please visit “Technical Data Table” to make sure 20111 fittings are your requirements.
√ Our advantage: Factory price; prompt delivery; quality ensured
√ MOQ: no limit for 20111 types.

Drawing

Technical Data Table

20231 fittings are of 30 degrees GB metric female flat seat. YH is a pioneer in manufacture and supply of GB metric female fittings. 20231 fittings are coated with zinc or chrome to protect from oxidation. 20231 fittings are packed well that can avoid the collision during delivery.

Details

√ Part no.: 20231(30°GB Metric Female Flat Seat)
√ Related items: 20241(45 degrees elbow); 20291(90 degrees elbow); 20211(Straight)
√ Advantage: Smooth surface finish; required tolerance; Good quality control; Problem solution service
√ Shipping term: CIF(customer required port); FOB(Ningbo); FCA; CFR(customer required port)
√ OEM service: available

Drawing

Technical Data Table

Hose fitting 30111 are with metric female multi-seal thread type. 30111 fittings are non-crimped types which are widely used in hydraulic fluid connections. And if crimped type required, please refer to 20111 types or contact us for details. YH is a professional manufacturer and reliable supplier in hydraulic field for more than 8 years. If any similar products required, we believe YH will be your right choice.

Details

√ Part no.: 30111(Metric Female Multi-seal)
√ Type: 20111(Crimped type); 30111(non-crimped type)
√ Stock condition: most items have been kept as stock products which can shorten the delivery time
√ Delivery time: 1 to 2 weeks
√ Package details: put in corrugated carton with nylon plastic then get together in multiple plywood case
√ Custom-orientated service: produce according to drawings or samples provided.

Drawing

Technical Data Table

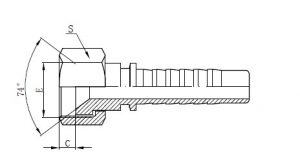

20711 fittings are GB metric female 74°cone seat types. YH manufacture complete sizes of 20711 fittings for 1/8’’ to 1.1/4’’ daily. But we can also provide OEM service for other sizes if required. Our fittings are finished with zinc plate treatment. Popular coatings are yellow zinc plating, white zinc plating, and chrome plating.

Details

√ Part no.: 20711(GB Metric Female 74°Cone Seat)
√ Material: Iron, carbon steel, stainless steel, or other required material
√ Standard(Specification): Winner production standard; as per drawings or samples.
√ Surface treatment: zinc plated, nickel plated; chrome plated; hot-dip galvanized; painting
√ Our features: Corrosion resistance, good color and luster, high durability, high precision, high performance.

Drawing

Technical Data Table

30511one piece are metric female 24 degrees cone heavy type with O-ring integral fittings for one or two wire braided hydraulic hoses. 30511one piece fittings can be crimped with related hoses directly. One piece fittings are finished with zinc plated to customers’ requirements. Standard sizes are showed below on technical data table. Different sizes are acceptable in our factory.

Details

√ Part no.: 30511one piece(Metric Female 24°Cone H.T. With O-ring Integral Fitting For One or Two-Wire Hose)
√ Related types: 30511 fittings; 00110 ferrules or 00210 ferrules; R1AT hoses; R2AT hoses; R1A hoses; R2A hoses; 1SN hoses, 2SN hoses, etc.
√ Equipment related; CNC machines, automatic punch; raw material cutter; ferrule(nut) crimping machine, etc
√ Coating: white zinc-plated; yellow zinc-plated; chrome plated; nickel plated

Drawing

Technical Data Table

10411 fittings are metric male 24 degree cone seat light type DIN3853. 10411 fittings are manufactured from 1/4’’ to 1.1/2’’ popularly. 10411 fittings are finished with zinc plated that three types can be chosen commonly which are zinc plated, chrome plated, and nickel plated. Fittings from YH Hydraulic are of good quality that can be installed easies and used for a long life term.

Details

√ Part no.: 10411(Metric Male 24°Cone Seat L.T. DIN3853)
√ Colors: white; yellow; silver
√ Coating: white zinc plated, yellow zinc plated, chrome plated, nickel plated, painting
√ Samples service: less than 5pcs in stock is free of charge
√ Our advantage: smooth surface, good tolerance controlled, high quality material used, reasonable prices provided

Drawing

Technical Data Table

10511 fittings are metric male 24°cone seat heavy type DIN3853. 10511 fittings from YH Hydraulic are a highly respected quality products that provides a long product life cycle which saves a customer on replacement parts and labor. YH Hydraulic offers a comprehensive range of hydraulic fittings in carbon and stainless steel.

Details

√ Part no.: 10511(Metric Male 24°Cone Seat H.T.DIN3853)
√ Sizes: from M14 to M52; hose available from 1/4’’ to 1.1/2’’
√ Coating: zinc plated; nickel plated; chrome plated; customer required coating available.
√ OEM service: available with samples or drawings presented; design products as customers’ demands.
√ Delivery time: less than for 30 days for an order big or small
√ Currency: USD, RMB, EURO, cash

Drawing

Technical Data Table

30212 fittings are metric female flat seal for spiral hoses and steel wire braided hoses such as R1AT, R2AT, 4SH, 4SP, etc. Fittings are coated with zinc plated or chrome plated before package. YH is providing good quality fittings, reasonable prices and better services. We can design fittings as customers’ requirements.

Details

√ Part no.: 30212(Metric Female Flat Seal For Spiral Hose)
√ Thread sizes: M22, M30, M36, M39, M42, M45, M52, M64, or other sizes required
√ Logo: YH or any other customer required logo
√ Material: 45 carbon steel, mild steel, stainless steel, etc.
√ OEM service: available for samples or drawings provided

Drawing

Technical Data Table

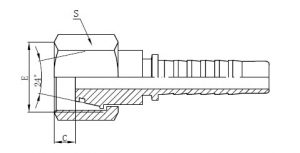

20491 fittings are 90 degrees metric female 24 degrees cone with o-ring DIN3853 which is heavy and crimped types. 20491 fitting sizes are from M12 to M27 but also other items are available for production. Non-crimped and related types are 30491 which are involved in our daily production. Fittings are coming in material of carbon steel and stainless steel mostly. If any other materials required, please email to us.

Details

√ Part no.: 20491(90°Metric Female 24°Cone L.T. With O-ring DIN3853: Crimp Type)
√ Sizes: thread sizes are from M12 to M27; Suitable hose sizes are from 04 to 12; other sizes are also available
√ Material: 45 Carbon Steel; Mild Steel; Stainless Steel; Brass; etc
√ Prices: prices quoted are based on items and quantities; but we will try to offer the best prices for each enquiry as we can
√ Delivery Port: Ningbo(nearest); Shanghai; Guangzhou
√ Samples: less than 5pcs is free of charge for checking the quality

Drawing

Technical Data Table

30542one piece fittings are 45°elbow metric female 24°cone with o-ring for one, two or four braided hydraulic hoses which are heavy types. Different types of one piece fittings are involved in our production daily. Many thread types and sizes can be your choose. And please visit our website or download catalog for detailed data.

Details

√ Part no.: 30542one piece(45°Metric Female 24°Cone H.T. With O-ring Four-Wire Integral Fitting)
√  Types: 30542 fittings with related ferrules crimped
√  Sizes: sizes showed on technical data table are standard ones in YH Hydraulic
√  Samples: less than 3pcs is free of charge for checking the quality
√  Delivery time: Less than 7 days for stock products
√  Stock condition: a wide variety of fittings are kept in our stock

Drawing

Technical Data Table

20611 hose fittings are metric female 60°cone crimped type which sizes are available from M14 t M27. Hydraulic hose fittings are widely used in the connection of machines. So we are offering a comprehensive line of hydraulic fittings. Our production includes complete thread types and sizes for different hydraulic hoses.

Details

√ Part no.: 20611(Metric Female 60°Cone Crimped Type)
√ Brand name: YH; others are available
√ Package details: Nylon plastic; corrugated carton; multiple plywood case
√ Custom-orientated service: produce according to drawings or samples provided, offer custom-design
√ Advantage: 1. High quality 2. Rich inventory 3. Prompt delivery 4. Reasonable price 5. Best service

Drawing

Technical Data Table

30241 hose fittings are suitable for hose sizes from 3/8’’ to 2’’. 30241 fittings are 45 degrees GB metric female flat seat types which are popularly produced and sold in YH Hydraulic. Complete thread types are included in our daily production. Please visit our website then email to us with your detailed product requirements.

Details

√ Part no.: 30241(45°GB Metric Female Flat Seat)
√ Material: carbon steel, stainless steel, brass
√ Surface treatment: zinc plated, chrome plated, nickel plated, etc
√ After sales service: we guarantee the good quality provided; available
√ Certificate: ISO9001:2008

Drawing

Technical Data Table

30711 hose fittings are GB metric female 74 degrees cone seat which are popular in machine inner connections. 30711 fitting sizes are suitable for one or two wire braided hydraulic hoses which sizes can be from 1/4’’ to 2’’. 30711 metric fittings are plated with zinc before package to protect from oxidation.

Details

√ Part no.: 30711(GB Metric Female 74°Cone Seat)
√ Ferrule types: 00110; 00210; 03310
√ Suitable hose sizes: from 1/4’’ to 2’’
√ OEM service: we are capable to design or produce with customers’ requirements, samples, or drawings.
√ Color options: white, yellow, nickel, colorful, etc.

Drawing

Technical Data Table

30411 fittings are metric female 24°cone light type with o-ring which is based on standard DIN3853. 30411 fittings are non-crimped types compared with 20411 fittings. Hose fittings are exported to markets such as Europe, South America, South Asia, Africa, etc. As good quality provided, we have obtained a high reputation from our customers.

Details

√ Part no.: 30411(Metric Female 24°Cone L.T. With O-ring DIN3853: Non-crimped Type)
√ Related items: 20411(Crimped types); 30511(Heavy type); 30441(45 degrees elbow); 30491(90 degrees elbow)
√ OEM service: we can provide OEM service with samples, drawings, or requirements presented
√ Samples: less than 5pcs is free of charged for checking product quality.
√ Delivery time: less than one week for stock products; less than 50 days for an order if it is small or big.

Drawing

Technical Data Table

20411 fittings are metric female 24 degrees cone light type with o-ring which are based on DIN3853 standard. 20411 fittings are crimped types compared with 30411 fittings. Hose fittings from YH Hydraulic are of perfect quality and cost control. YH insist on offering customers with good quality and reasonable prices.

Details

√ Part no.: 20411(Metric Female 24°Cone L.T. With O-ring DIN3853; Crimped Type)
√ Thread types: metric, JIS, BSP, BSPT, ORFS, NPT, JIC, NPSM, etc.
√ Application: machinery, transportation, mines, oil fields, agriculture, vehicle, heavy industry, etc.
√ Surface treatment: yellow zinc plated, white zinc plated, nickel plated, chrome plated, etc.
√ Delivery time: less than 10 days for 20411 fittings as we have kept a big quantities in stock.

Drawing

Technical Data Table
