Hydraulic Hose Ferrules

We have a huge range of hydraulic hose ferrules available on our website ready for immediate dispatch. Our ferrules are perfect for any applications including welding hoses and boiler use too. For more information about our range of ferrules and which hoses they suite, please get in touch with our friendly sales team who are more than happy to help!

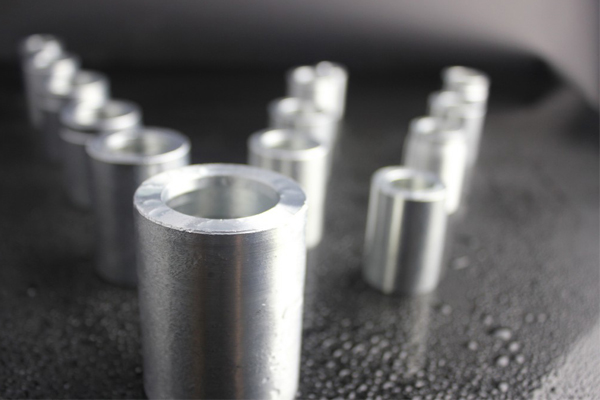

4SH Interlock Sleeves

00601 interlock ferrule is for R13 or DIN 20023 4SH hoses. Ferrules are connectors for hoses and fittings to make hose assemblies. Thus its malleability values much when crimping hose assemblies. Ferrules in YH factory come in material of mild steel which can ensure its malleability. Related e-catalog is posted below for customers to view popular products from YH Hydraulic.

Details

√ Part no.: 00601(Interlock Ferrule For R13/DIN 20023 4SH Hose)
√ Strength: High quality; Prompt delivery; Reasonable prices; Full range specifications
√ Custom-orientated service: Available
√ Quality control: ISO9001:2008
√ Standard: based on Winner(Eaton) production standard
√ Processing equipment: CNC machines(ensure its high precision)
√ Special specification: welcomed, please contact sales for discussion

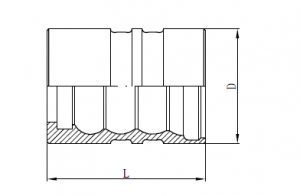

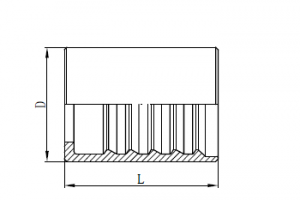

Drawing

Drawing

Technical Data

代号胶管 HOSE BORE尺寸 DIMENSIONS
PART NO.公称内径 DN标号 DASHDL
00601-20322059.587
00601-24402471100
00601-32503287109

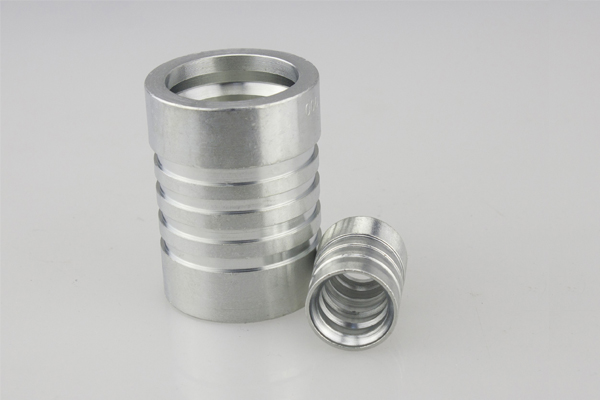

Interlock Hydraulic Ferrules

Ferrule 00605 is interlock type for R13 strengthen hoses used in different hydraulic machines. Ferrules manufactured in YH factory are for high, medium and low-pressure hose assemblies. Our part no.s are based on Winner standard. For other standards, please contact our sales or download e-catalog showed below to confirm with our part no.s.

Details

√ Part no.: 00605(Interlock Ferrule For R13 Strengthen Hose)
√ Material: Carbon Steel #20; Stainless Steel; Copper; Aluminum
√ Features: Highly strict quality control; Rich investments of equipments; Good sealing and high-strength; high degrees of smooth surface
√ Application: Automobile, Engineering, Lathe, Metallurgy, Petroleum, Mining, Construction, Shipbuilding and many other fields related with hydraulic and its delivery system of fluid or gas.

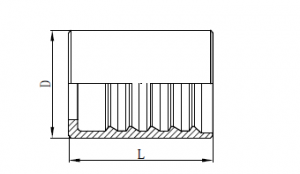

Drawing

Drawing

Technical Data

代号胶管 HOSE BORE尺寸 DIMENSIONS
PART NO.公称内径 DN标号 DASHDL
00605-081283346
00605-1220124055
00605-1625164964
00605-2032206170
00605-2440247082.5
00605-3250328583.2

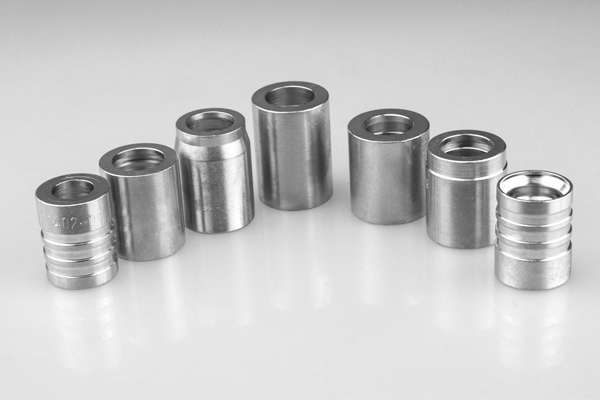

Skive Steel Ferrule

Ferrule 00200 is skive type for SAE 100R2AT or EN853 2SN hydraulic hoses. YH Hydraulic has rich experience in manufacturing hydraulic ferrules that sizes are from 02 to 32. Equipped with advanced testing machines, we ensure the precision of productions.

Details

√ Part no.: 00200
√ Brand Name: YH
√ Place of Origin: Ningbo, China(Mainland)
√ Material: Carbon Steel #20(Mild steel)
√ Delivery time: within 10 days after receiving deposit
√ Package: Nylon plastic; corrugated carton; Multiple plywood case
√ Custom-orientated Service: YH can offer designs to customers and also welcome customers’ drawings or samples.

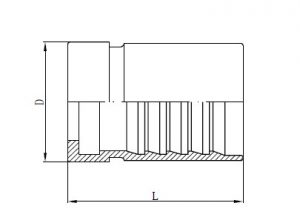

Drawing

Drawing

Technical Data

代号胶管 HOSE BORE尺寸 DIMENSIONS
PART NO.公称内径 DN标 号 DASHDL
00200-024220.627
00200-04642130.2
00200-05852432
00200-0610624.532
00200-081283034
00200-10161033.439.2
00200-1220123843.4
00200-1625164650
00200-2032205657
00200-2440246260
00200-3250327575

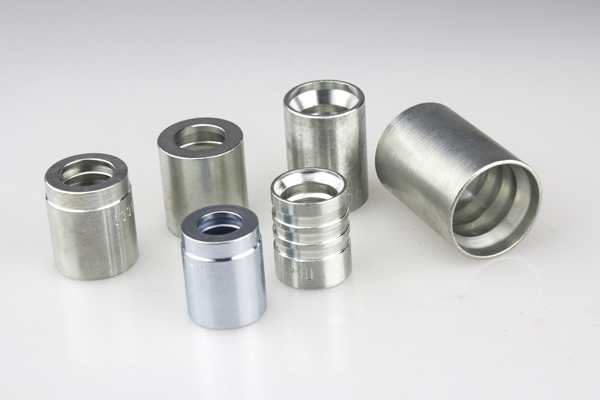

1SN Hose Hydraulic Sleeve

Item 00100 ferrule is for SAE 100R1AT or EN853 1SN Hose. It is a type of skive ferrules which can meet many international ferrule standards and some industry production. Ferrules are finished with zinc plated(Cr6) or chrome plated(Cr3). Colors like yellow, white and silver are all common in YH Hydraulic.

Details

√ Part no.: 00100
√ Processing Equipment: CNC machines, raw material cutting machines, automatic punch
√ Certificate: ISO9001:2008
√ Standards: Winner production standard(also welcome customers’ standards like Parker and Manuli)
√ Brand: YH
√ Inspection: About 5 times.

Drawing

Drawing

Technical Data

代号胶管 HOSE BORE尺寸 DIMENSIONS
PART NO.公称内径 DN标 号 DASHDL
00100-02421726
00100-04641930
00100-05852132.2
00100-061062332
00100-081282834
00100-1016103139
00100-1220123643.5
00100-1625164350
00100-2032205157
00100-2440245760.3
00100-3250327075

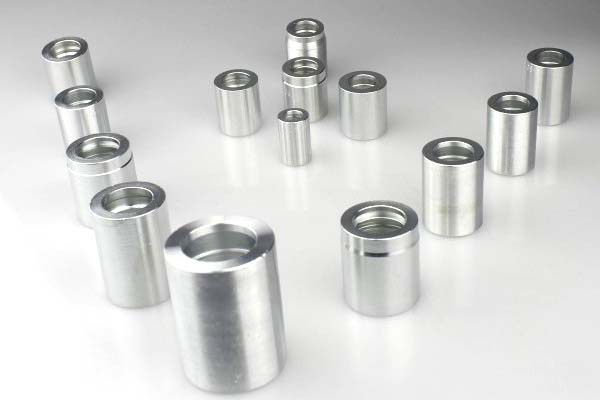

Non-skive Hydraulic Hose Sleeves

Hydraulic hose ferrules(00110) are produced in YH factory every day. Ferrules are widely used in hoses with fittings to make hose assemblies. Hose assemblies are important for machines function well. So ferrule quality is one part of no leaking of oil or water. Item 00110 is Ferrule for SAE 100R1AT/EN853 1SN Hose.

Details

√ Part no.: 00110
√ Name: Swaged Ferrule For SAE R1AT Hose
√ Usage: Components for hose assemblies
√ Standards: Winner Standard(welcome other standards or customer drawings)

Drawing

Drawing

Technical Data

代号胶管 HOSE BORE尺寸 DIMENSIONS
PART NO.公称内径 DN标 号 DASHDL
00110-04641930
00110-058520.532
00110-0610623.232
00110-081282735.3
00110-10161030.538
00110-1220123444.2
00110-1422143745
00110-16251642.652
00110-20322050.857
00110-2440245860
00110-3250327275
