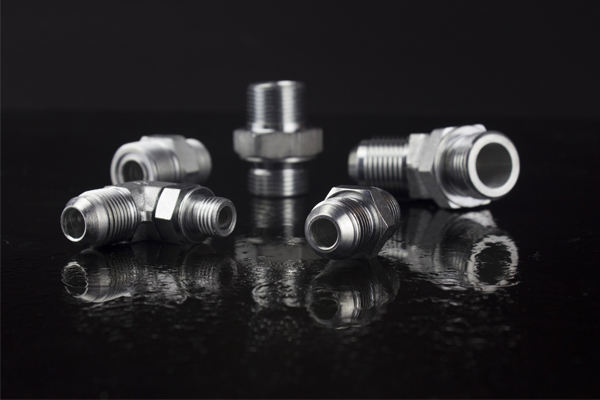

7B series fittings are BSP female thread types. Complete sizes from 02 to 32 are manufactured in YH Hydraulic to meet most hydraulic hoses demands. YH can produce other thread types such as metric, JIC, NPT, ORFS, JIS metric, BSPT, etc. Please email to us if you require any hydraulic products, you can find complete sizes and types in our factory.
√ Part no.: 7B(BSP Female)
√ Sizes: From 02 to 32 are available to be produced in YH Hydraulic
√ Coating: yellow zinc-plated; white zinc-plated; chrome plated(Silver)
√ Standard: Eaton production standard; others are ok but need to present part no.
√ Custom-orientated: we can provide OEM service with samples or drawings provided.
BSP Female Adapter Fittings Drawing
Technical Data Table
| THREAD | DIMENSIONS | |||
| PART NO. | E | F | L | S1 |
| 7B-02 | G1/8"X28 | G1/8"X28 | 22 | 14 |
| 7B-04 | G1/4"X19 | G1/4"X19 | 24 | 19 |
| 7B-06 | G3/8"X19 | G3/8"X19 | 26 | 22 |
| 7B-08 | G1/2"X14 | G1/2"X14 | 32 | 27 |
| 7B-10 | G5/8"X14 | G5/8"X14 | 36 | 30 |
| 7B-12 | G3/4"X14 | G3/4"X14 | 36 | 32 |
| 7B-16 | G1"X11 | G1"X11 | 40 | 41 |
| 7B-20 | G1.1/4"X11 | G1.1/4"X11 | 44 | 50 |
| 7B-24 | G1.1/2"X11 | G1.1/2"X11 | 45 | 55 |
| 7B-32 | G2"X11 | G2"X11 | 54 | 70 |
5B9 series are 90 degrees BSP male 60 degrees seat with BSP female thread type. Complete sizes production is involved in our factory that are from 1/8’’ to 1.1/4’’. Technical data are showed on the table. We welcome sizes difference manufacture to customers’ demands. To check our quality, we can send less than 5pcs samples for testing.
√ Part no.: 5B9(90 degrees BSP male 60 degrees seat with BSP female)
√ Related products: 5B(straight type); 5B4(45 degrees elbow)
√ Material: 45 carbon steel; 20 carbon steel(mild steel); stainless steel; brass; others
√ Standard: based on Winner(Eaton) production
√ Delivery: Within 10 days or according to invoice made
√ Port: Ningbo(nearest); Shanghai; Guangzhou; others

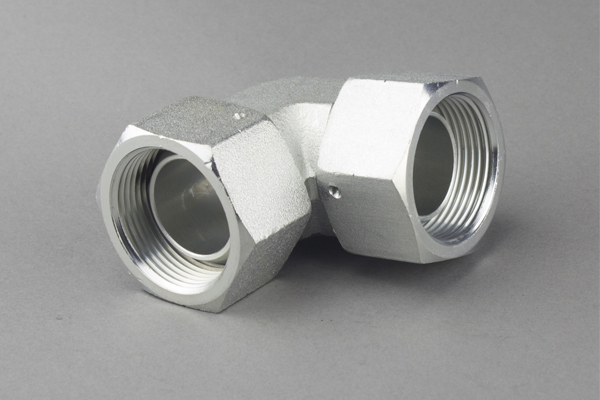

Elbow BSP Adapter Fittings Drawing
Technical Data Table
| THREAD | DIMENSIONS | ||||
| PART NO. | E | F | A | B | S1 |
| 5B9-02 | G1/8"X28 | G1/8"X28 | 30 | 28 | 17 |
| 5B9-04 | G1/4"X19 | G1/4"X19 | 33 | 33 | 19 |
| 5B9-06 | G3/8"X19 | G3/8"X19 | 37 | 37 | 22 |
| 5B9-08 | G1/2"X14 | G1/2"X14 | 43 | 43 | 27 |
| 5B9-12 | G3/4"X14 | G3/4"X14 | 52 | 47 | 33 |
| 5B9-16 | G1"X11 | G1"X11 | 59 | 55 | 44 |
| 5B9-20 | G1.1/4"X11 | G1.1/4"X11 | 60 | 56 | 50 |

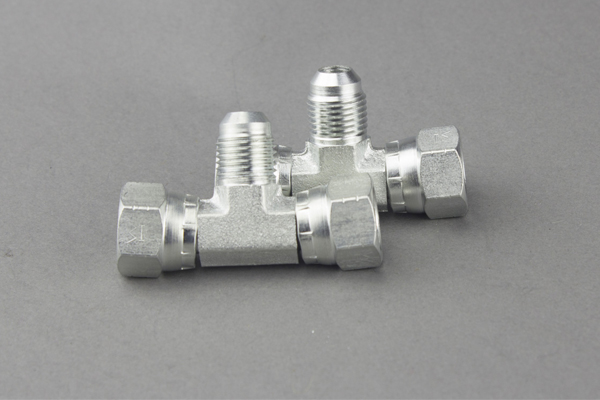

BB instead of BSP male 60 degrees seat with BSP female 60 degrees cone branch tee threads is a popular series among customers. YH is providing complete sizes of BB series which are showed on technical table data. YH can also produce other items with different threads such NPT, BSPT, metric, ORFS, JIC, etc. Our products are coated with zinc or chrome mostly before delivery.
√ Part no.: BB(BSP Male 60 Degrees Seat with BSP Female 60 Degrees Cone Branch Tee)
√ Good color and luster. All the adapter tees are cleaned without burr and impurities
√ Our advantage: High precision; competitive prices; good material controlled
√ Shipping term: FOB(Ningbo) and CIF(Customer’ port) are commonly accepted
√ MOQ: 300PCS for re-produced items

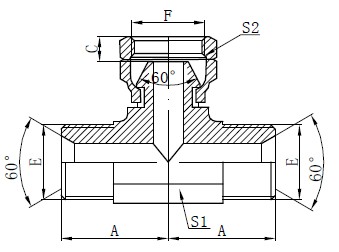

BSP Hydraulic Tee Drawing
Technical Data Table
| THREAD | DIMENSIONS | |||||
| PART NO. | E | F | A | C | S1 | S2 |
| BB-02 | G1/8"X28 | G1/8"X28 | 19.8 | 5.5 | 11 | 14 |
| BB-04 | G1/4"X19 | G1/4"X19 | 25 | 5.5 | 14 | 19 |
| BB-06 | G3/8"X19 | G3/8"X19 | 26 | 6.5 | 17 | 22 |
| BB-08 | G1/2"X14 | G1/2"X14 | 30 | 8 | 22 | 27 |
| BB-12 | G3/4"X14 | G3/4"X14 | 40 | 11.5 | 27 | 32 |
| BB-16 | G1"X11 | G1"X11 | 43 | 11.5 | 33 | 41 |
| BB-20 | G1.1/4"X11 | G1.1/4"X11 | 59 | 12 | 44 | 50 |

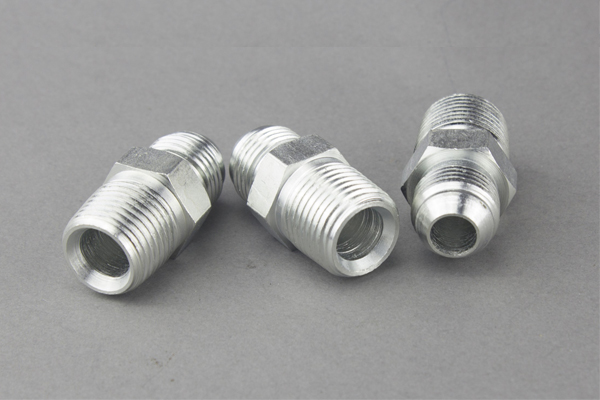

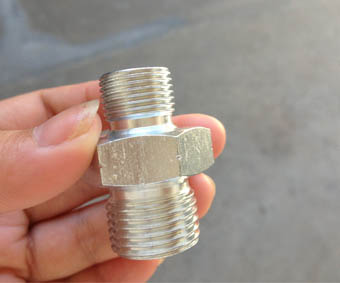

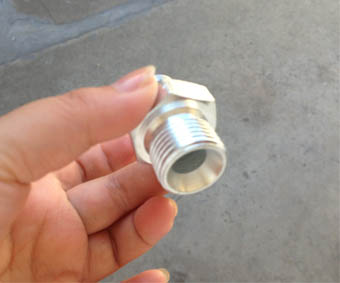

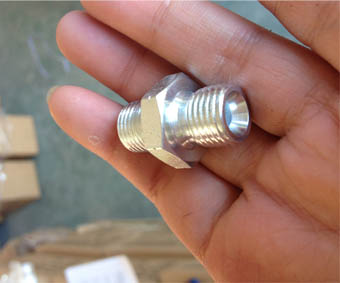

1B series instead of BSP male 60 degrees seat bonded seal threads have sizes from 1/8’’ to 2’’ that are popularly producing items in YH Hydraulic. 1B adapter fittings come in material of 45 carbon steel mostly. But other materials like stainless steel or brass are acceptable in our factory. These adapter fittings are finished with zinc plated or chrome plated.
√ Part no.: 1B(BSP Male 60 Degrees Seat Bonded Seal)
√ Type: Straight(1B); 45 degrees Elbow(1B4); 90 degrees(1B9)
√ Color: White; Yellow; Silver
√ Sizes: showed on technical data table are popular items; others if specifications provided are available.
√ Stock: most items are kept as stock products for quick delivery time.

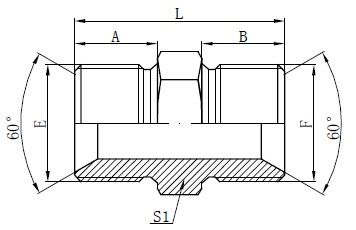

BSP Male Adapter Fittings Drawing
Technical Data Table
| THREAD | DIMENSIONS | |||||
| PART NO. | E | F | A | B | S1 | L |
| 1B-02 | G1/8"X28 | G1/8"X28 | 10 | 10 | 14 | 26 |
| 1B-02-04 | G1/8"X28 | G1/4"X19 | 10 | 12 | 19 | 28 |
| 1B-02-06 | G1/8"X28 | G3/8"X19 | 10 | 13.5 | 22 | 31.5 |
| 1B-02-08 | G1/8"X28 | G1/2"X14 | 10 | 16 | 27 | 34 |
| 1B-04 | G1/4"X19 | G1/4"X19 | 12 | 12 | 19 | 30 |
| 1B-04-06 | G1/4"X19 | G3/8"X19 | 12 | 13.5 | 22 | 33 |
| 1B-04-08 | G1/4"X19 | G1/2"X14 | 12 | 16 | 27 | 36 |
| 1B-04-10 | G1/4"X19 | G5/8"X14 | 12 | 17.5 | 30 | 38.5 |
| 1B-06 | G3/8"X19 | G3/8"X19 | 13.5 | 13.5 | 22 | 35 |
| 1B-06-08 | G3/8"X19 | G1/2"X14 | 13.5 | 16 | 27 | 37.5 |
| 1B-06-10 | G3/8"X19 | G5/8"X14 | 13.5 | 17.5 | 30 | 40 |
| 1B-06-12 | G3/8"X19 | G3/4"X14 | 13.5 | 18.5 | 32 | 42 |
| 1B-08 | G1/2"X14 | G1/2"X14 | 16 | 16 | 27 | 40 |
| 1B-08-10 | G1/2"X14 | G5/8"X14 | 16 | 17.5 | 30 | 42.5 |
| 1B-08-12 | G1/2"X14 | G3/4"X14 | 16 | 18.5 | 32 | 44 |
| 1B-10 | G5/8"X14 | G5/8"X14 | 17.5 | 17.5 | 30 | 44 |
| 1B-10-12 | G5/8"X14 | G3/4"X14 | 17.5 | 18.5 | 32 | 46 |
| 1B-10-16 | G5/8"X14 | G1"X11 | 17.5 | 20.5 | 41 | 50 |
| 1B-12 | G3/4"X14 | G3/4"X14 | 18.5 | 18.5 | 32 | 47 |
| 1B-12-16 | G3/4"X14 | G1"X11 | 18.5 | 20.5 | 41 | 49 |
| 1B-12-20 | G3/4"X14 | G1.1/4"X11 | 18.5 | 20.5 | 50 | 56 |
| 1B-16 | G1"X11 | G1"X11 | 20.5 | 20.5 | 41 | 53 |
| 1B-16-20 | G1"X11 | G1.1/4"X11 | 20.5 | 20.5 | 50 | 57 |
| 1B-16-24 | G1"X11 | G1.1/2"X11 | 20.5 | 23 | 55 | 60 |
| 1B-20 | G1.1/4"X11 | G1.1/4"X11 | 20.5 | 20.5 | 50 | 58 |
| 1B-20-24 | G1.1/4"X11 | G1.1/2"X11 | 20.5 | 23 | 55 | 61 |
| 1B-24 | G1.1/2"X11 | G1.1/2"X11 | 23 | 23 | 55 | 63 |
| 1B-24-32 | G1.1/2"X11 | G2"X11 | 23 | 25.5 | 70 | 66 |
| 1B-32 | G2"X11 | G2"X11 | 25.5 | 25.5 | 70 | 69 |

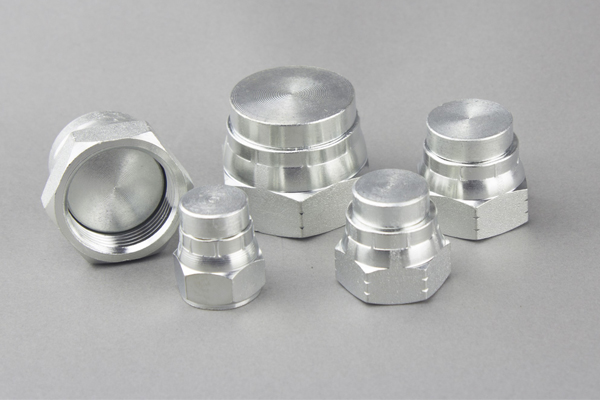

Item 9B is instead of BSP female 60 degrees cone plug. This item is welcomed and highly accepted because of its good quality and reasonable prices. YH are manufacturing more than 10000 types of hydraulic fittings and adapters including BSP, BSPT, UNF, NPT, and metric threads. We are also willing to offer OEM services.
√ Part no.: 9B(BSP Female 60 Degrees Cone Plug)
√ For Sales: Quality assurance for both products and after-sales service; Offer favorable prices; Environment friendly technology to protect the earth; OEM and ODM service available
√ For Quality: Material under strictly control when using; Products inspected 100% before finished; Production line tested by work team or data engineers at fixed period; before packed and loaded, products’ property and quantities tested; QC tam in YH Hydraulic
√ Market: products sold to North American; South American; Middle East; South Asia; Latin American mostly
BSP Female Plugs Drawing
Technical Data Table
| DIMENSIONS | |||
| PART NO. | THREAD E | C | S1 |
| 9B-04 | G1/4"X19 | 5.5 | 17 |
| 9B-06 | G3/8"X19 | 6 | 22 |
| 9B-08 | G1/2"X14 | 7 | 27 |
| 9B-10 | G5/8"X14 | 8.5 | 27 |
| 9B-12 | G3/4"X14 | 9 | 32 |
| 9B-16 | G1"X11 | 11 | 38 |
| 9B-20 | G1.1/4"X11 | 11 | 50 |
| 9B-24 | G1.1/2"X11 | 12 | 55 |
| 9B-32 | G2"X11 | 15 | 70 |

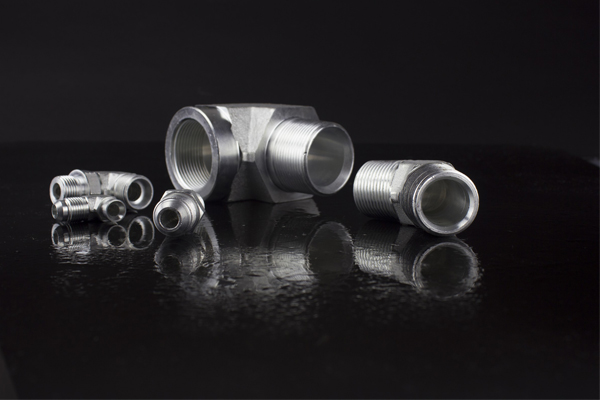

1B4 adapter fittings are 45°BSP male 60°seat types which are widely used in the connections of different machines. A comprehensive line of adapter fittings are involved in YH production which can meet a variety of connection demands. Universal thread types of fittings can be found and chosen in YH Hydraulic. Please go ahead to visit our website or contact us for detailed requirements.
√ Part no.: 1B4(45°BSP Male 60°Seat)
√ Sizes: 1/8" to 2"; other sizes or differences can also be finished in our factory
√ Thread type: BSP male to BSP male
√ Related type: straight type(1B); 90°elbow type(1B9)
√ Free samples: available for less than 5pcs.

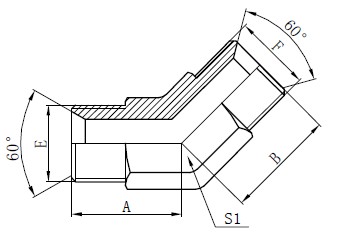

Industrial Tube Fittings Drawing
Technical Data Table
| THREAD | DIMENSIONS | ||||
| PART NO. | E | F | A | B | S1 |
| 1B4-02-04 | G1/8"X28 | G1/4"X19 | 22 | 22 | 14 |
| 1B4-04 | G1/4"X19 | G1/4"X19 | 22 | 22 | 14 |
| 1B4-04-06 | G1/4"X19 | G3/8"X19 | 22 | 22 | 17 |
| 1B4-06 | G3/8"X19 | G3/8"X19 | 22 | 22 | 17 |
| 1B4-06-08 | G3/8"X19 | G1/2"X14 | 27 | 27 | 22 |
| 1B4-08 | G1/2"X14 | G1/2"X14 | 27 | 27 | 22 |
| 1B4-08-12 | G1/2"X14 | G3/4"X14 | 33 | 33 | 27 |
| 1B4-10 | G5/8"X14 | G5/8"X14 | 27 | 27 | 22 |
| 1B4-10-12 | G5/8"X14 | G3/4"X14 | 33 | 33 | 27 |
| 1B4-12 | G3/4"X14 | G3/4"X14 | 33 | 33 | 27 |
| 1B4-12-16 | G3/4"X14 | G1"X11 | 37 | 37 | 33 |
| 1B4-16 | G1"X11 | G1"X11 | 37 | 37 | 33 |
| 1B4-16-20 | G1"X11 | G1.1/4"X11 | 40 | 40 | 44 |
| 1B4-20 | G1.1/4"X11 | G1.1/4"X11 | 40 | 40 | 44 |
| 1B4-20-24 | G1.1/4"X11 | G1.1/2"X11 | 47 | 47 | 50 |
| 1B4-24 | G1.1/2"X11 | G1.1/2"X11 | 47 | 47 | 50 |
| 1B4-32 | G2"X11 | G2"X11 | 55 | 55 | 65 |
2B9 is instead of 90°BSP male 60°seat with BSP female 60°cone threads adapters. YH is going for building a successful business that can provide satisfaction and growth towards customers, employees and vendors. For products part, we improve production ability and quality control for international standard and better use in hydraulic machines.
√ Part no.: 2B9(thread type: 90 degrees BSP male 60 degrees seat with BSP female 60 degrees cone)
√ Sizes: provided on technical data table which are standard ones; contact our sales for other sizes
√ Processing: from material quality control to finished products packing in order
√ Color: White; Yellow; Silver(common ones)
√ Delivery time: according to items and quantity required in earliest time

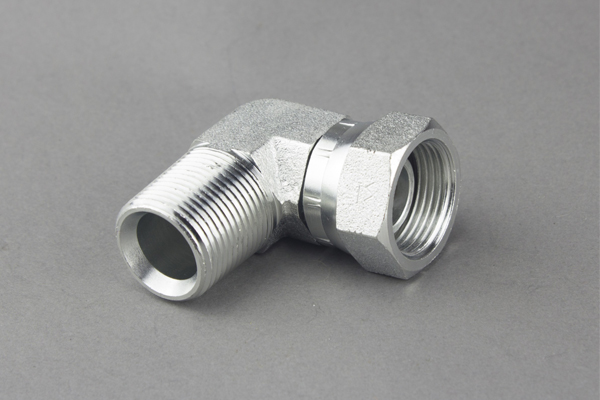

BSP Elbow Connector Drawing
Technical Data Table
| THREAD | DIMENSIONS | |||||
| PART NO. | E | F | A | C | S1 | S2 |
| 2B9-02 | G1/8"X28 | G1/8"X28 | 19.8 | 5.5 | 11 | 14 |
| 2B9-04 | G1/4"X19 | G1/4"X19 | 29 | 5.5 | 14 | 19 |
| 2B9-04-06 | G1/4"X19 | G3/8"X19 | 30 | 6.5 | 17 | 22 |
| 2B9-06 | G3/8"X19 | G3/8"X19 | 30 | 6.5 | 17 | 22 |
| 2B9-06-04 | G3/8"X19 | G1/4"X19 | 30 | 5.5 | 17 | 19 |
| 2B9-08 | G1/2"X14 | G1/2"X14 | 37 | 8 | 22 | 27 |
| 2B9-08-06 | G1/2"X14 | G3/8"X19 | 37 | 6.5 | 22 | 22 |
| 2B9-10 | G5/8"X14 | G5/8"X14 | 37 | 10.5 | 22 | 30 |
| 2B9-10-08 | G5/8"X14 | G1/2"X14 | 37 | 8 | 22 | 27 |
| 2B9-12 | G3/4"X14 | G3/4"X14 | 43 | 11.5 | 27 | 32 |
| 2B9-16 | G1"X11 | G1"X11 | 47 | 11.5 | 33 | 41 |
| 2B9-20 | G1.1/4"X11 | G1.1/4"X11 | 59 | 12 | 44 | 50 |
| 2B9-24 | G1.1/2"X11 | G1.1/2"X11 | 61 | 13 | 50 | 55 |
| 2B9-32 | G2"X11 | G2"X11 | 66 | 16 | 65 | 70 |
1BJ9 is one of hydraulic hose adapters with BSP male and JIC male thread types. YH Hydraulic is providing a wide assortment of adapters which are precisely fabricated using not only carbon steel but stainless steel. There are available in several sizes and specifications and conform to industrial quality and functional standards.
√ Part no.: 1BJ9(90 degrees BSP male 60 degrees seat with JIC male 74 degrees cone)
√ Material: Carbon steel #45; Carbon Steel #20; Stainless Steel
√ Standards: SAE J514; SAE J1453; DIN 2353; DIN3865 (popular ones)
√ Coating: zinc-plated; nickel-plated; chrome-plated; hot-dip galvanized
√ Delivery time: with a week for stock products
√ Sample service: less than 5 PCS are free of charge

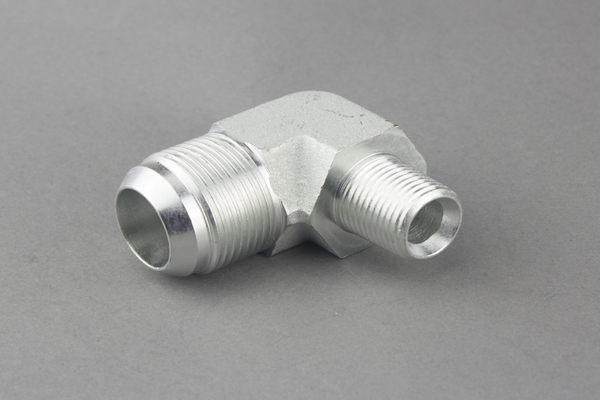

BSP Hydraulic Adapters Drawing
Technical Data Table
| THREAD | DIMENSIONS | ||||
| PART NO. | E | F | A | B | S1 |
| 1BJ9-04 | G1/4"X19 | U7/16"X20 | 27 | 29 | 14 |
| 1BJ9-04-05 | G1/4"X19 | U1/2"X20 | 27 | 29 | 14 |
| 1BJ9-04-06 | G1/4"X19 | U9/16"X18 | 27 | 29 | 14 |
| 1BJ9-06 | G3/8"X19 | U9/16"X18 | 29 | 30 | 17 |
| 1BJ9-06-08 | G3/8"X19 | U3/4"X16 | 33 | 33 | 19 |
| 1BJ9-08 | G1/2"X14 | U3/4"X16 | 37 | 37 | 22 |
| 1BJ9-08-10 | G1/2"X14 | U7/8"X14 | 37 | 37 | 22 |
| 1BJ9-10 | G5/8"X14 | U7/8"X14 | 43 | 43 | 27 |
| 1BJ9-12 | G3/4"X14 | U1.1/16"X12 | 43 | 43 | 27 |
| 1BJ9-16 | G1"X11 | U1.5/16"X12 | 47 | 52 | 33 |
| 1BJ9-16-20 | G1"X11 | U1.5/8"X12 | 56 | 59 | 44 |
| 1BJ9-20 | G1.1/4"X11 | U1.5/8"X12 | 59 | 56 | 44 |
| 1BJ9-24 | G1.1/2"X11 | U1.7/8"X12 | 61 | 57 | 50 |
| 1BJ9-32 | G2"X11 | U2.1/2"X12 | 66 | 63 | 65 |
