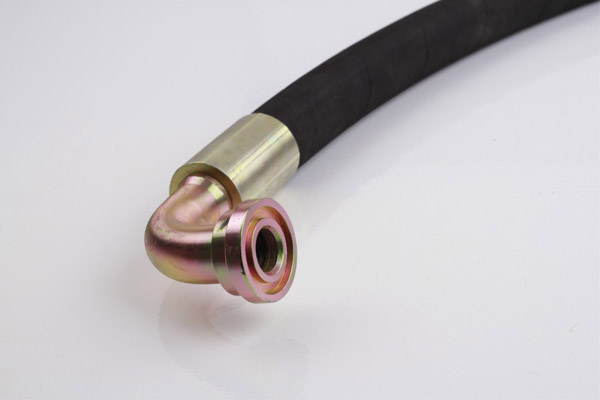

YH-4SH-87992 hose assemblies are composed with DIN EN856 4SH, 90°SAE flange 9000PSI flange fittings spiral hoses, and ferrules for spiral hoses. Complete items of hoses assemblies can be found in YH Hydraulic. We offer an unbeatable combination of quality, selection and good price that our competitors can’t begin to match. Please go ahead to contact us for any deeper requirements.
√ Part no.: YH-4SH-87992(Hose: DIN EN856 4SH; Fitting: 90°SAE Flange 9000PSI For Spiral Hose)
√ Ferrule types: 00400(ferrules for spiral hose)
√ Brand: YH; for other brands, please contact us with details.
√ Stock condition: we have kept a lot of items of hoses, fittings and ferrules for a fast delivery.
√ Payment term: 100% TT in advance; 30% TT in advance, 70% TT before shipment; others can be discussed.

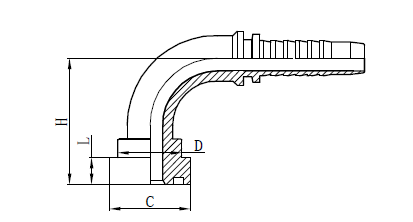

4SH Hose Assembly Fitting Drawing
Fitting Technical Data
| 代号 | 法兰尺寸 | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||||
| PART NO. | FLANGE SIZE | 公称内径DN | 标 号 DASH | C | D | L | H |
| 87992-08-08 | 1/2" | 12 | 8 | 31.8 | 23.9 | 14.3 | 40.5 |
| 87992-12-12 | 3/4" | 20 | 12 | 41.3 | 31.7 | 14.3 | 69.3 |
| 87992-16-16 | 1" | 25 | 16 | 47.6 | 38 | 14.3 | 80.7 |
| 87992-20-20 | 1.1/4" | 32 | 20 | 54 | 43.6 | 14.3 | 91.8 |
| 87992-24-24 | 1.1/2" | 40 | 24 | 63.5 | 50.8 | 14.3 | 104.6 |
| 87992-32-32 | 2" | 50 | 32 | 79.4 | 66.5 | 14.3 | 124 |

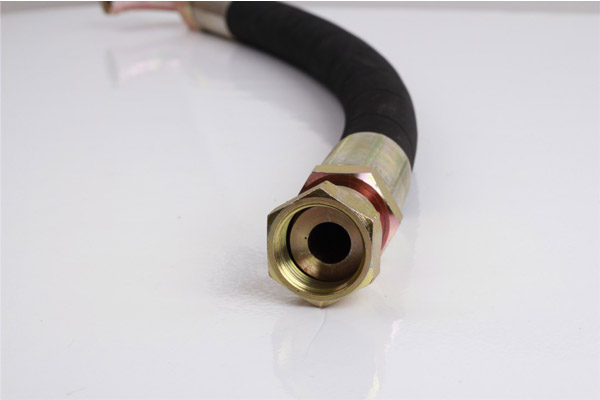

YH-R12-30212 hose assemblies are composed with SAE 100R12 hose, metric female flat seal fittings for spiral hoses, and 00400 ferrules. Complete sizes are offered which can be checked with following tables. YH Hydraulic is offering no leaking oil for hydraulic hose assemblies that can provide a good and efficient working when put into usage.
√ Part no.: YH-R12-30212(Hose: SAE 100R12; Fitting: Metric Female Flat Seal For Spiral Hose)
√ Ferrule type: 00400(ferrule for four wire braided hose such as R12, 4SP, 4SH, etc)
√ Material: fittings are manufactured with 45 carbon steel; ferrules are with 20 carbon steel.
√ Temp.: available for -40℃ up to +100℃(Max.: +120℃)
√ Delivery time: less than 10 days if fittings and hoses are in stock
√ Delivery ports: available for Ningbo port, Shanghai port, Guangzhou port, etc.

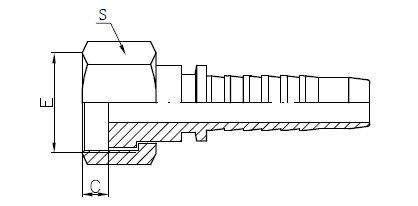

R12 High Pressure Hose Fitting Drawing
Fitting Technical Data Table
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S |
| 30212-22-08 | M22X1.5 | 12 | 8 | 10 | 27 |
| 30212-30-12 | M30X1.5 | 20 | 12 | 11.5 | 36 |
| 30112-36-14 | M36X2 | 22 | 14 | 13 | 41 |
| 30112-36-16 | M36X2 | 25 | 16 | 13 | 41 |
| 30212-39-16 | M39X2 | 25 | 16 | 13 | 46 |
| 30212-42-16 | M42X2 | 25 | 16 | 15 | 50 |
| 30212-45-20 | M45X2 | 32 | 20 | 15 | 55 |
| 30212-52-20 | M52X2 | 32 | 20 | 17 | 60 |
| 30212-52-24 | M52X2 | 38 | 24 | 17 | 60 |
| 30212-64-32 | M64X2 | 50 | 32 | 23 | 75 |

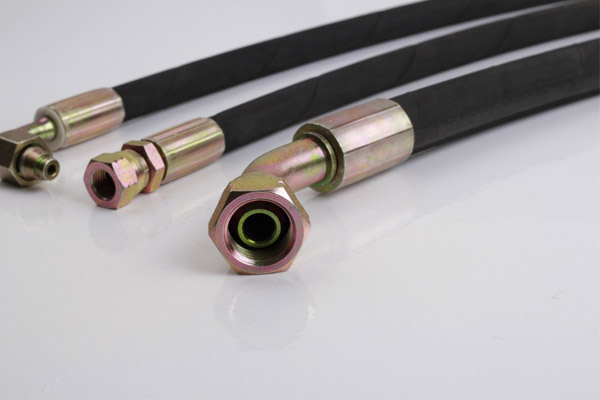

YH-R2A-30111 hose assemblies are composed with SAE 100R2A, metric female multi-seal fittings and related ferrules. Hose assemblies are sold with high tightness, long service life and good oil resistance. We are providing different types of hose assemblies for your choose. Please contact us with detailed enquiries.
√ Part no.: YH-R2A-30111(Hose: SAE 100R2A; Fitting: Metric Female Multi-seal)
√ Ferrule type: 00210(ferrule for two wire braided hose); 03310(ferrule for one or two wire braided hose)
√ YH assembly features: high tightness, long service life, good oil resistance, good surface, reasonable selling prices, etc
√ The working temperature can range from -40℃ to +100℃
√ They can be appropriate for hydraulic, oil-carrying, or lubricating parts of all kinds of mechanical equipments.

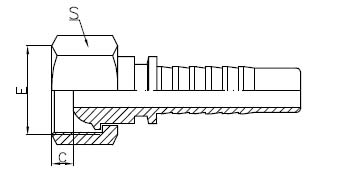

Rubber Hose Ends Fitting Drawing
Fitting Technical Data Table
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S |
| 30111-14-04 | M14X1.5 | 6 | 4 | 4 | 19 |
| 30111-16-05 | M16X1.5 | 8 | 5 | 4.5 | 22 |
| 30111-18-06 | M18X1.5 | 10 | 6 | 4.5 | 24 |
| 30111-22-08 | M22X1.5 | 12 | 8 | 5 | 27 |
| 30111-27-10 | M27X1.5 | 16 | 10 | 4.5 | 32 |
| 30111-30-12 | M30X1.5 | 20 | 12 | 4.5 | 36 |
| 30111-36-14 | M36X2 | 22 | 14 | 5 | 41 |
| 30111-39-16 | M39X2 | 25 | 16 | 5 | 46 |
| 30111-45-20 | M45X2 | 32 | 20 | 5 | 55 |
| 30111-52-24 | M52X2 | 40 | 24 | 5 | 60 |

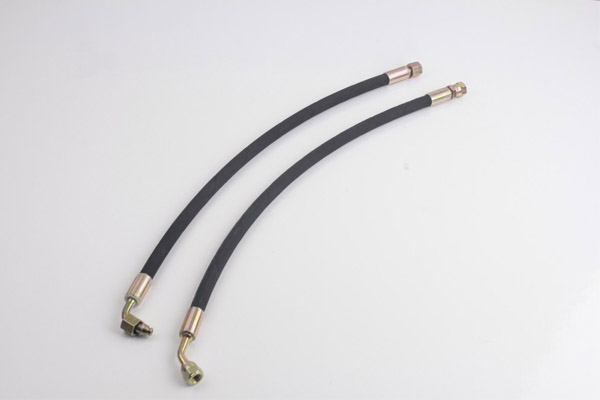

YH-R2A-30111 hose assemblies are composed with SAE 100R2A, metric female multi-seal fittings and related ferrules. Hose assemblies are sold with high tightness, long service life and good oil resistance. We are providing different types of hose assemblies for your choose. Please contact us with detailed enquiries.
√ Part no.: YH-R2A-30111(Hose: SAE 100R2A; Fitting: Metric Female Multi-seal)
√ Ferrule type: 00210(ferrule for two wire braided hose); 03310(ferrule for one or two wire braided hose)
√ YH assembly features: high tightness, long service life, good oil resistance, good surface, reasonable selling prices, etc
√ The working temperature can range from -40℃ to +100℃
√ They can be appropriate for hydraulic, oil-carrying, or lubricating parts of all kinds of mechanical equipments.

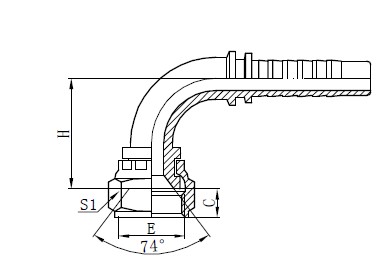

Two Wire Braided Hose Assembly Fitting Drawing
Fitting Technical Data Table
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S1 | H |
| 26791-04-04 | 7/16"X20 | 6 | 4 | 8.5 | 17 | 30 |
| 26791-05-04 | 1/2"X20 | 6 | 4 | 9.5 | 19 | 31.5 |
| 26791-05-05 | 1/2"X20 | 8 | 5 | 9.5 | 19 | 34.5 |
| 26791-06-04 | 9/16"X18 | 6 | 4 | 10 | 19 | 31.5 |
| 26791-06-05 | 9/16"X18 | 8 | 5 | 10 | 19 | 34.3 |
| 26791-06-06 | 9/16"X18 | 10 | 6 | 10 | 19 | 36 |
| 26791-08-06 | 3/4"X16 | 10 | 6 | 11 | 24 | 38.4 |
| 26791-08-08 | 3/4"X16 | 12 | 8 | 11 | 24 | 44.5 |
| 26791-10-06 | 7/8"X14 | 10 | 6 | 11 | 27 | 39.9 |
| 26791-10-08 | 7/8"X18 | 12 | 8 | 11 | 27 | 45 |
| 26791-10-10 | 7/8"X18 | 16 | 10 | 11 | 27 | 50 |
| 26791-12-08 | 1.1/16"X12 | 12 | 8 | 13.5 | 32 | 46 |
| 26791-12-10 | 1.1/16"X12 | 16 | 10 | 13.5 | 32 | 51.5 |
| 26791-12-12 | 1.1/16"X12 | 20 | 12 | 13.5 | 32 | 57.6 |
| 26791-14-12 | 1.3/16"X12 | 20 | 12 | 14.5 | 36 | 58 |
| 26791-16-12 | 1.5/16"X12 | 20 | 12 | 14.5 | 41 | 59.5 |
| 26791-16-14 | 1.5/16"X12 | 22 | 14 | 14.5 | 41 | 62 |
| 26791-16-16 | 1.5/16"X12 | 25 | 16 | 14.5 | 41 | 71.6 |
| 26791-20-16 | 1.5/8"X12 | 25 | 16 | 15.5 | 50 | 73 |
| 26791-20-20 | 1.5/8"X12 | 32 | 20 | 15.5 | 50 | 82 |
| 26791-24-20 | 1.7/8"X12 | 32 | 20 | 18.5 | 55 | 82 |
| 26791-24-24 | 1.7/8"X12 | 40 | 24 | 18.5 | 55 | 93.4 |
| 26791-32-32 | 2.1/2"X12 | 50 | 32 | 24.5 | 75 | 118.9 |

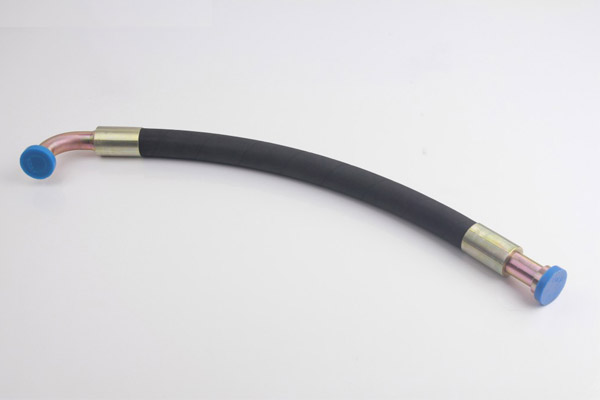

YH-4SH-87312 types are composed with DIN EN856 4SH hose, SAE Flange 3000PSI fittings and ferrules which are used for four steel wire braided hoses. Complete sizes of YH-4SH-87312 assemblies can be found in YH Hydraulic. We not only provide good quality products but also fast delivery service.
√ Part no.: YH-4SH-87312(Hose: DIN EN856 4SH; Fitting: SAE Flange 3000PSI For Spiral Hose)
√ Ferrule type: 00400 ferrule(ferrule for four wire steel braided hose)
√ Application: high pressure hydraulic application including mobile, machine tool and agricultural application, using petroleum or water based hydraulic fluids.
√ Suitable Temp.: -40℃ to +100℃(Max: +120℃)
√ Delivery time: less than 10 days for one order

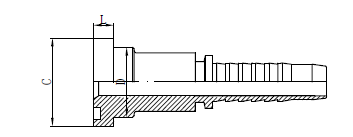

High Pressure Hose Assemblies Fitting Drawing
Fitting Technical Data Table
| 代号 | 法兰尺寸 | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | FLANGE SIZE | 公称内径DN | 标 号 DASH | C | D | L |
| 87312-08-08 | 1/2" | 12 | 8 | 30.2 | 23.9 | 7 |
| 87312-12-12 | 3/4" | 20 | 12 | 38.1 | 31.7 | 7 |
| 87312-16-16 | 1" | 25 | 16 | 44.4 | 38 | 8.2 |
| 87312-20-20 | 1.1/4" | 32 | 20 | 50.8 | 43.2 | 8.2 |
| 87312-24-24 | 1.1/2" | 40 | 24 | 60.3 | 50.3 | 8.2 |
| 87312-32-32 | 2" | 50 | 32 | 71.4 | 62.2 | 9.8 |

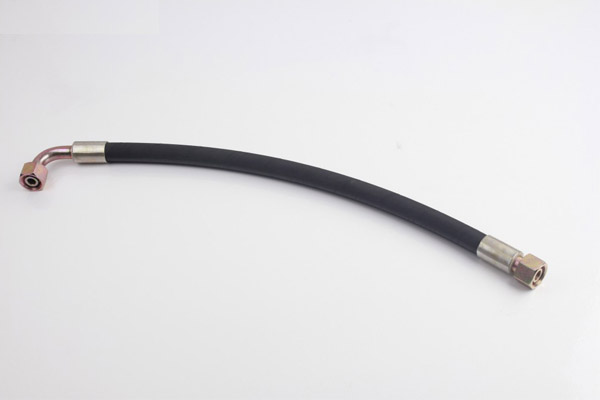

YH-2SN-20491 type assemblies are composed with 2SN hose, 20491 fittings and related ferrules. Hose assemblies are main products manufactured in YH Hydraulic. YH offers a wired variety of hose assembly equipment and excellent training programs to support unique application and technology training needs.
√ Part no.: YH-2SN-20491(Hose: DIN853 2SN; Fitting: 90°Metric Female 24°Cone L.T. With O-ring DIN3853 Crimped Type)
√ Ferrule type: 00210(Ferrules for two wire hose); 03310(ferrules for one or two wire hoses)
√ Samples: less than 50cm is free of charge for checking the quality.
√ Delivery time: Less than 10 days if hoses and fittings are in stock.
√ Delivery port: Ningbo
√ Currency: USD, RMB, EURO, etc.

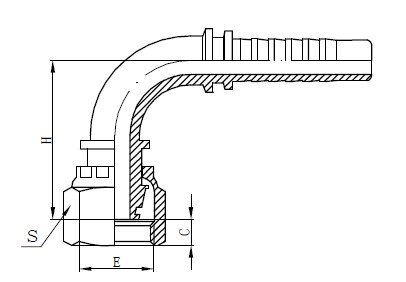

One Piece Hose Fitting Drawing
Fitting Technical Data Table
| 代号 | 螺纹E | 胶管 HOSE BORE | 管子外径 | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | TUBE.O.D | C | S | H |
| 20491-12-04 | M12X1.5 | 6 | 4 | 6 | 2 | 17 | 44.3 |
| 20491-14-05 | M14X1.5 | 8 | 5 | 8 | 3.5 | 19 | 49.3 |
| 20491-12-06 | M12X1.5 | 10 | 6 | 6 | 2 | 17 | 48.3 |
| 20491-14-06 | M14X1.5 | 10 | 6 | 8 | 3.5 | 19 | 52.3 |
| 20491-16-06 | M16X1.5 | 10 | 6 | 10 | 3.5 | 22 | 52.4 |
| 20491-18-08 | M18X1.5 | 12 | 8 | 12 | 3.5 | 24 | 60 |
| 20491-22-10 | M22X1.5 | 16 | 10 | 15 | 2.5 | 27 | 67 |
| 20491-26-12 | M26X1.5 | 20 | 12 | 18 | 2.5 | 32 | 77.5 |
| 20491-27-12 | M27X1.5 | 20 | 12 | 18 | 2.5 | 32 | 78.5 |

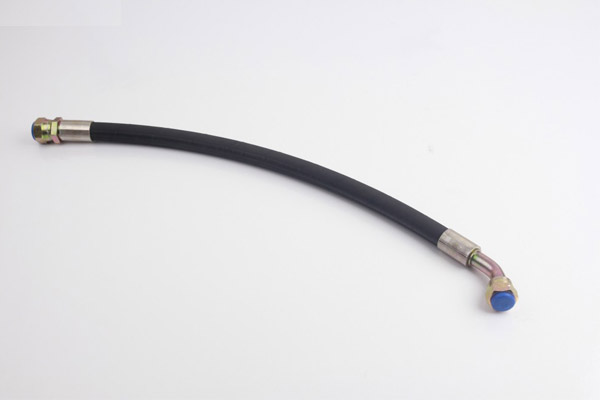

YH-R1AT-20241 hose assembly types are composed with SAE 100R1AT hoses, metric female flat seat fittings and ferrules for two wire hoses. We offer hose assemblies sizes from 04 to 32. Prices are designed by hoses types and length, fitting types, ferrule types and assembly quantities. But we insist on offering good quality products to establish long term business with customers.
√ Part no.: YH-R1AT-20241(Hose: SAE 100R1AT; Fitting: 45°GB Metric Female Flat Seat)
√ Ferrule type: 00210(ferrule for two wire braided hose); 00110(ferrule for one wire braided hose)
√ Samples: less than 1pcs which is less than 30cm is free of charge for checking the quality
√ Components: one piece hydraulic hose, two ferrules, and two fittings
√ Types: hose assembly types are designed as customers’ requirements.

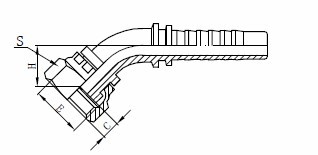

R1AT Hydraulic Hose Assembly Fitting Drawing
Fitting Technical Data Table
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | H | S |
| 20241-14-04 | M14X1.5 | 6 | 4 | 9 | 18.8 | 19 |
| 20241-16-05 | M16X1.5 | 8 | 5 | 9.5 | 20.2 | 22 |
| 20241-18-06 | M18X1.5 | 10 | 6 | 9.5 | 21.8 | 24 |
| 20241-22-08 | M22X1.5 | 12 | 8 | 9.5 | 24 | 27 |
| 20241-27-10 | M27X1.5 | 16 | 10 | 10.5 | 26.5 | 32 |
| 20241-30-12 | M30X1.5 | 20 | 12 | 12.5 | 30 | 36 |
| 20241-39-16 | M39X2 | 25 | 16 | 13.5 | 31 | 46 |
| 20241-45-20 | M45X2 | 32 | 20 | 15.5 | 36.5 | 55 |

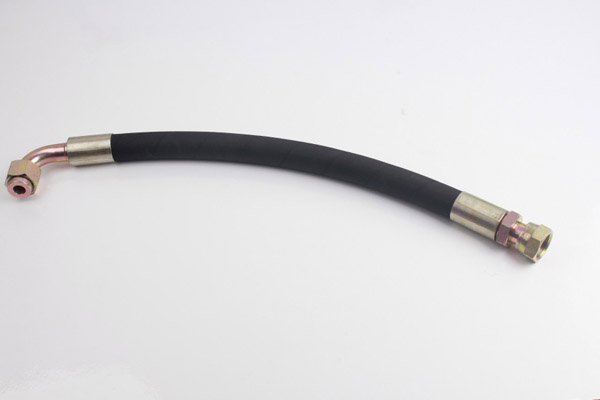

YH-4SP-22611D hose assemblies are composed with 4SP hoses, BSP female double hexagon fittings and ferrules are four wire hoses. YH Hydraulic use advanced crimping machines to ensure high precision and good appearance. Each assembly is packed with same length of plastic film to protect from collision in the delivery.
√ Part no.: YH-4SP-22611D(Hose: DIN EN856 4SP; Fitting: BSP Female 60°Cone With Double Hexagon)
√ Ferrule type: 00400 ferrules are used in the assembly which is special for four wire braided hydraulic hose.
√ Assembly application: in the fields of agriculture, manufacturing, transportation, mining, construction, automotive equipments, etc.
√ Types: we can make hose assemblies to customers’ demands that are hose types, fitting types, length, etc.
√ Advantage: reasonable prices, high quality, good precision

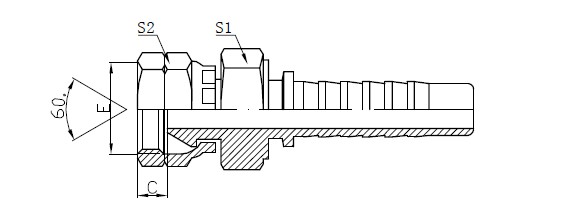

Low Pressure Hose Assembly Fitting Drawing
Fitting Technical Data Table
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S1 | S2 |
| 22611D-04-04 | G1/4"X19 | 6 | 4 | 5.5 | 19 | 19 |
| 22611D-06-06 | G3/8"X19 | 10 | 6 | 6.5 | 22 | 22 |
| 22611D-08-08 | G1/2"X14 | 12 | 8 | 8 | 27 | 27 |
| 22611D-12-12 | G3/4"X14 | 20 | 12 | 11.5 | 32 | 32 |
| 22611D-16-16 | G1"X11 | 25 | 16 | 11.5 | 41 | 41 |
| 22611D-20-20 | G1 1/4"X11 | 32 | 20 | 12 | 50 | 50 |
| 22611D-24-24 | G1 1/2"X11 | 40 | 24 | 13 | 55 | 55 |
| 22611D-32-32 | G2"X11 | 50 | 32 | 16 | 70 | 70 |

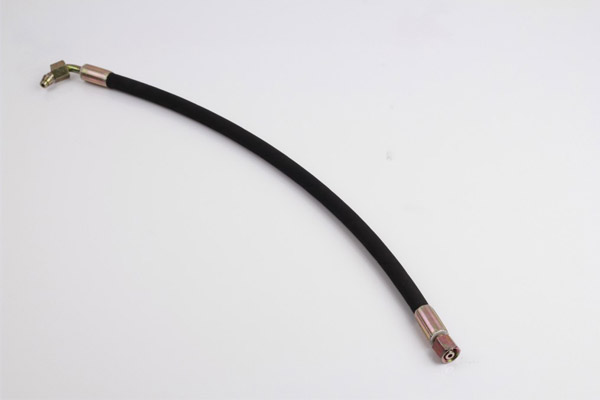

YH-R2AT-30511 hose assemblies are composed with R2AT hydraulic hose, metric female fittings of heavy type and related ferrules. Commonly, we choose ferrules for two wire braided hydraulic hoses. But also ferrules for R1AT and R2AT hoses can be used in YH-R2AT-30511 hose assembling. Hose assemblies from YH Hydraulic are no leaking when put into application.
√ Part no.: YH-R2AT-30511(Hose: SAE 100R2AT; Fittings: Metric Female 24°Cone H.T. With O-ring DIN3853 Non-crimped type)
√ Ferrule types: 00210(ferrule for two wire braided hose); 03310(ferrules for R1AT hose and R2AT hose)
√ Assembly types: we can make hose assemblies to customers’ requirements.
√ Delivery time: less than 15 days for stock products(hoses and fittings are in stock)
√ Samples: one piece less than 0.2cm is free of charge for checking the quality.

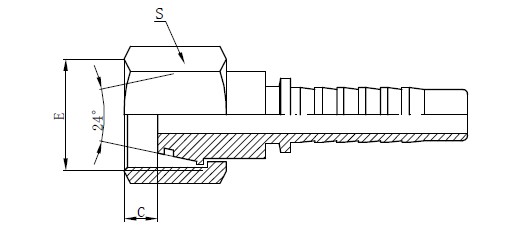

Hydraulic Assembly Spares Fitting Drawing
Fitting Technical Data Table
| 代号 | 螺纹E | 胶管 HOSE BORE | 管子外径 | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | TUBE.O.D | C | S |
| 30511-14-04 | M14x1.5 | 6 | 4 | 6 | 2 | 17 |
| 30511-16-04 | M16x1.5 | 6 | 4 | 8 | 2 | 19 |
| 30511-18-04 | M18x1.5 | 6 | 4 | 10 | 2 | 22 |
| 30511-18-05 | M18x1.5 | 8 | 5 | 10 | 2 | 22 |
| 30511-20-05 | M20x1.5 | 8 | 5 | 12 | 3 | 24 |
| 30511-20-06 | M20X1.5 | 10 | 6 | 12 | 3 | 24 |
| 30511-22-06 | M22X1.5 | 10 | 6 | 14 | 3 | 27 |
| 30511-24-08 | M24X1.5 | 12 | 8 | 16 | 3 | 30 |
| 30511-30-10 | M30X2 | 16 | 10 | 20 | 3.4 | 36 |
| 30511-30-12 | M30X2 | 20 | 12 | 20 | 3.5 | 36 |
| 30511-36-12 | M36X2 | 20 | 12 | 25 | 3 | 41 |
| 30511-36-14 | M362 | 22 | 14 | 25 | 3 | 41 |
| 30511-36-16 | M36X2 | 25 | 16 | 25 | 3 | 41 |
| 30511-42-16 | M42X2 | 25 | 16 | 30 | 5 | 50 |
| 30511-52-20 | M52X2 | 32 | 20 | 38 | 6.5 | 60 |
| 30511-52-24 | M52X2 | 40 | 24 | 38 | 6.5 | 60 |
